1-794067-1

Active

TE Connectivity AMP Connectors

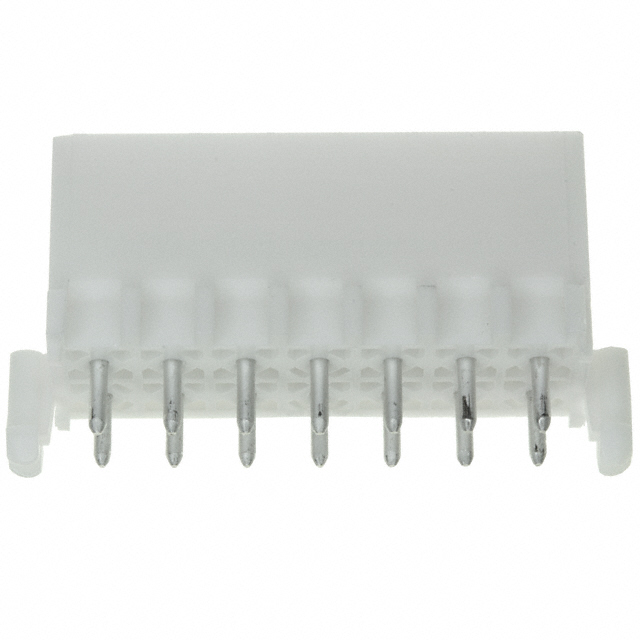

CONN HEADER VERT 14POS 4.14MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-794067-1

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 14POS 4.14MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-794067-1	794067 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold, Tin-Lead
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 - 150 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 - 3.81 Ám
Contact Finish Thickness - Post	150 Áin	150 Áin
Contact Finish Thickness - Post	3.81 Ám	3.81 Ám
Contact Length - Post	4.45 mm	4.45 mm
Contact Length - Post	0.175 in	0.175 in
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	White	White
Insulation Height	13.5 mm	13.5 mm
Insulation Height	0.531 in	0.531 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	14	14
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	85 - 105 ░C
Operating Temperature [Min]	-20 C	-20 C
Pitch - Mating	4.14 mm	4.14 mm
Pitch - Mating	0.163 in	0.163 in
Row Spacing - Mating	4.14 mm	4.14 mm
Row Spacing - Mating	0.163 in	0.163 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	600 VAC	600 VAC

794067 Series

CONN HEADER VERT 14POS 4.14MM

Part	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Contact Type	Insulation Material	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Number of Positions	Insulation Color	Number of Rows	Number of Positions Loaded	Termination	Contact Material	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Applications	Contact Shape	Pitch - Mating	Pitch - Mating	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Style	Contact Finish - Post	Fastening Type	Voltage Rating
TE Connectivity AMP Connectors 1-794067-1	Varies by Wire Gauge	4.45 mm	0.175 in	Male Pin	Nylon, Polyamide (PA)	13.5 mm	0.531 in	-20 C	105 ░C	Gold	14	White	2	All	Solder	Brass	Shrouded - 4 Wall	30 Áin	0.76 Ám	UL94 V-0	150 Áin	3.81 Ám	Through Hole	General Purpose	Circular	4.14 mm	0.163 in	Header	4.14 mm	0.163 in	Board to Cable/Wire	Tin	Locking Ramp	600 VAC
TE Connectivity AMP Connectors 794067-2	Varies by Wire Gauge	4.45 mm	0.175 in	Male Pin	Nylon, Polyamide (PA)	13.5 mm	0.531 in	-20 C	105 ░C	Gold	14	White	2	All	Solder	Brass	Shrouded - 4 Wall	30 Áin	0.76 Ám	UL94 V-0	150 Áin	3.81 Ám	Through Hole	General Purpose	Circular	4.14 mm	0.163 in	Header	4.14 mm	0.163 in	Board to Cable/Wire	Tin-Lead	Locking Ramp	600 VAC
TE Connectivity AMP Connectors 794067-1	Varies by Wire Gauge	4.45 mm	0.175 in	Male Pin	Nylon, Polyamide (PA)	13.5 mm	0.531 in	-20 C	85 °C	Tin-Lead	14	White	2	All	Solder	Brass	Shrouded - 4 Wall	150 Áin	3.81 Ám	UL94 V-0	150 Áin	3.81 Ám	Through Hole	General Purpose	Circular	4.14 mm	0.163 in	Header	4.14 mm	0.163 in	Board to Cable/Wire	Tin-Lead	Locking Ramp	600 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.74
		10	$ 4.13
		200	$ 3.83

Description

General part information

794067 Series

Connector Header Through Hole 14 position 0.163" (4.14mm)
