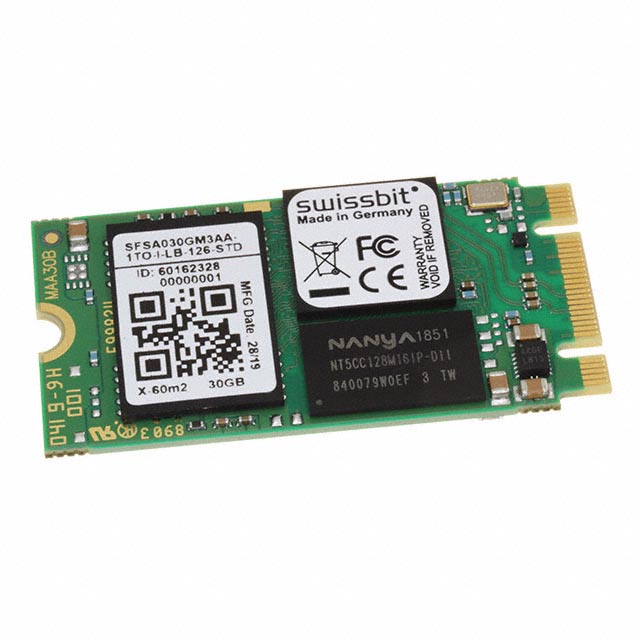

SFSA030GM3AA1TO-I-LB-126-STD

Obsolete

SWISSBIT

SSD 30GB M.2 MLC SATA III 3.3V

Deep-Dive with AI

Search across all available documentation for this part.

SFSA030GM3AA1TO-I-LB-126-STD

Obsolete

SWISSBIT

SSD 30GB M.2 MLC SATA III 3.3V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFSA030GM3AA1TO-I-LB-126-STD

Current - Max [Max]	960 mA
Form Factor	M.2 Module
Memory Size	30 GB
Memory Type	Solid State Drive (SSD) FLASH - NAND (MLC)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	80 mm
Size / Dimension [y]	22 mm
Size / Dimension [z]	3.6 mm
Speed - Read	520 MB/s
Speed - Write	450 MB/s
Type	SATA III
Voltage - Supply	3.3 V

SFSA030 Series

Part	Type	Speed - Write	Memory Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Current - Max [Max]	Memory Size	Speed - Read	Form Factor	Voltage - Supply
SWISSBIT SFSA030GV3AA2TO-I-LB-22P-STD	SATA III	450 MB/s	Solid State Drive (SSD) FLASH - NAND (pSLC)	85 °C	-40 °C	54 mm	39 mm	4 mm	630 mA	30 GB	520 MB/s	Slim-SATA
SWISSBIT SFSA030GM3AA2TO-I-LB-22P-STD	SATA III	415 MB/s	Solid State Drive (SSD) FLASH - NAND (pSLC)	85 °C	-40 °C	42 mm	22 mm	3.6 mm	550 mA	30 GB	520 MB/s	M.2 Module	3.3 V
SWISSBIT SFSA030GM3AA1TO-C-LB-526-STD	SATA III	450 MB/s	Solid State Drive (SSD) FLASH - NAND (MLC)	70 °C	0 °C	80 mm	22 mm	3.6 mm	960 mA	30 GB	520 MB/s	M.2 Module	3.3 V
SWISSBIT SFSA030GM2AK1TO-I-5S-136-STD	SATA III	48 MB/s	Solid State Drive (SSD) FLASH - NAND (TLC)	85 °C	-40 °C	80 mm	22 mm	3.58 mm		30 GB	185 MB/s	M.2 Module	3.3 V
SWISSBIT SFSA030GM3AA1TO-C-LB-126-STD	SATA III	450 MB/s	Solid State Drive (SSD) FLASH - NAND (MLC)	70 °C	0 °C	80 mm	22 mm	3.6 mm	960 mA	30 GB	520 MB/s	M.2 Module	3.3 V
SWISSBIT SFSA030GU4AA2TO-I-LB-22P-STD	SATA III	450 MB/s	Solid State Drive (SSD) FLASH - NAND (pSLC)	85 °C	-40 °C	2 in	29.85 mm	3.3 mm	610 mA	30 GB	520 MB/s	mSATA	3.3 V
SWISSBIT SFSA030GM2AK1TO-I-5S-536-STD	SATA III	48 MB/s	Solid State Drive (SSD) FLASH - NAND (TLC)	85 °C	-40 °C	80 mm	22 mm	3.58 mm		30 GB	185 MB/s	M.2 Module	3.3 V
SWISSBIT SFSA030GU4AA2TO-C-LB-22P-STD	SATA III	450 MB/s	Solid State Drive (SSD) FLASH - NAND (pSLC)	70 °C	0 °C	2 in	29.85 mm	3.3 mm	610 mA	30 GB	520 MB/s	mSATA	3.3 V
SWISSBIT SFSA030GM3AA1TO-I-LB-126-STD	SATA III	450 MB/s	Solid State Drive (SSD) FLASH - NAND (MLC)	85 °C	-40 °C	80 mm	22 mm	3.6 mm	960 mA	30 GB	520 MB/s	M.2 Module	3.3 V
SWISSBIT SFSA030GV2AK1TO-I-5S-236-STD	SATA III	48 MB/s	Solid State Drive (SSD) FLASH - NAND (TLC)	85 °C	-40 °C	54 mm	39 mm	4 mm		30 GB	185 MB/s	Slim-SATA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 113.98
		10	$ 101.15
		25	$ 96.44
		40	$ 94.10
		80	$ 90.76

Description

General part information

SFSA030 Series

Solid State Drive (SSD) FLASH - NAND (MLC) 30GB SATA III M.2 Module 3.3V

Documents

Technical documentation and resources

No documents available
