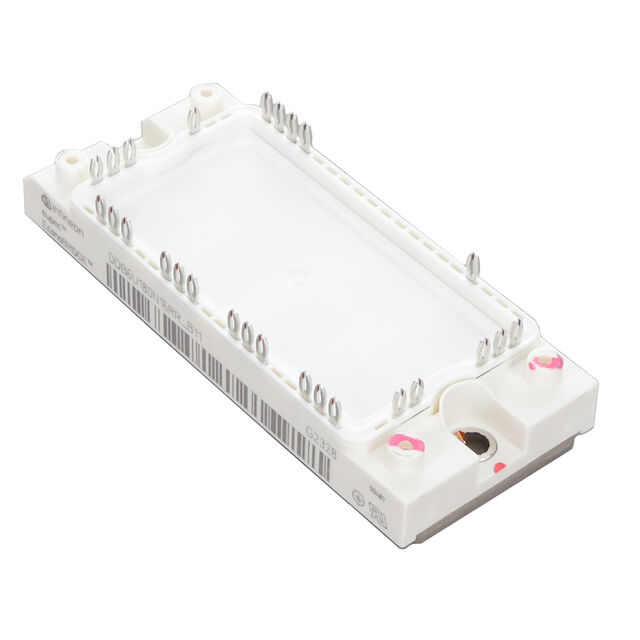

EUPEC™ ECONOBRIDGE™ 1600 V, 180 A DIODE BRIDGE MODULE WITH BRAKE CHOPPER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DDB6U180N16RRB11BPSA2

Active

Infineon Technologies

EUPEC™ ECONOBRIDGE™ 1600 V, 180 A DIODE BRIDGE MODULE WITH BRAKE CHOPPER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DDB6U180N16RRB11BPSA2

Configuration	Single Chopper
Current - Collector (Ic) (Max) [Max]	140 A
Current - Collector Cutoff (Max) [Max]	1 mA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	6.3 nF
Mounting Type	Chassis Mount
NTC Thermistor	False
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Max [Max]	515 W
Supplier Device Package	AG-ECONO2B
Vce(on) (Max) @ Vge, Ic	2.2 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

DDB6U180 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Diode Type	Package / Case	Mounting Type	Voltage - Peak Reverse (Max)	Technology	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	IGBT Type	Current - Collector Cutoff (Max) [Max]	Configuration	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]	Input Capacitance (Cies) @ Vce	Vce(on) (Max) @ Vge, Ic	Input	Voltage - Collector Emitter Breakdown (Max) [Max]
Infineon Technologies DDB6U180N16RRPB37BPSA1	150 °C	-40 °C	1 mA	50 A	Three Phase	Module	Chassis Mount	1.6 kV	Standard	AG-ECONO2-7	2.15 V
Infineon Technologies DDB6U180N16RRB37BOSA1						Module	Chassis Mount			Module
Infineon Technologies DDB6U180N16RRB11BPSA2	150 °C	-40 °C				Module	Chassis Mount			AG-ECONO2B		Trench Field Stop	1 mA	Single Chopper	515 W	140 A	6.3 nF	2.2 V	Standard	1200 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 119.28

Description

General part information

DDB6U180 Series

eupec™ EconoBRIDGE™- 1600VDiode Bridge Modulesin EconoPACK™2 housing with IGBT4 Brake Chopper and PressFIT contact technology for a more compact converter design.
