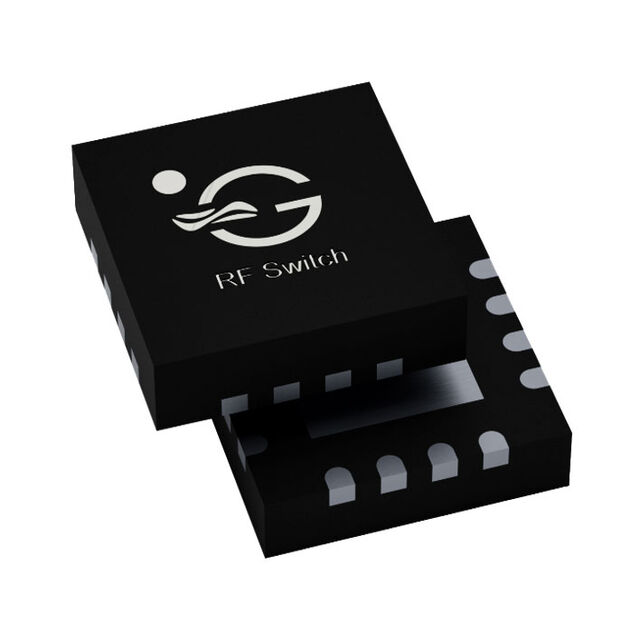

TS8423K

Active

Tagore Technology

RF SWITCH SPDT 30MHZ-6GHZ 20W

Search across all available documentation for this part.

Active

Tagore Technology

RF SWITCH SPDT 30MHZ-6GHZ 20W

Technical Specifications

Parameters and characteristics for this part

RF SWITCH SPDT 30MHZ-6GHZ 20W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Frequency Range [Max]	Frequency Range [Min]	Insertion Loss	IIP3	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Isolation	Topology	RF Type	Test Frequency	Impedance	Package / Case	Circuit
Tagore Technology TS8423K	85 °C	-40 °C	5 GHz	30 MHz	0.5 dB	77 dBm	Surface Mount	2.6 V	5.25 V	16-QFN (3x3)	22 dB	Reflective	Cellular, LTE	5 GHz	50 Ohms	16-VFQFN Exposed Pad	SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Switch IC Cellular, LTE SPDT 50Ohm 16-QFN (3x3)
