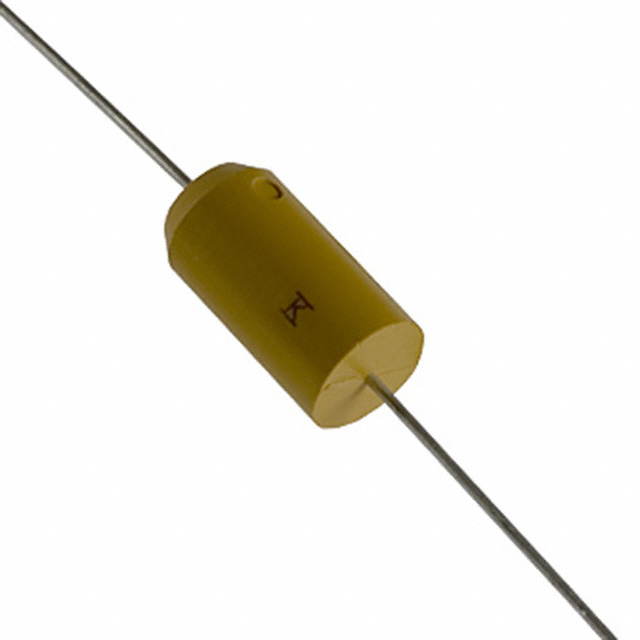

T322E106K050AS

Active

KEMET

AXIAL,MLD TA,10UF,50V,10%,E CASE,BULK ROHS COMPLIANT: NO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet KEM_T2039_T322_AXIAL_T323.pdf +1

T322E106K050AS

Active

KEMET

AXIAL,MLD TA,10UF,50V,10%,E CASE,BULK ROHS COMPLIANT: NO

Deep-Dive with AI

DocumentsDatasheet KEM_T2039_T322_AXIAL_T323.pdf +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T322E106K050AS

Capacitance	10 µF
ESR (Equivalent Series Resistance)	1.6 Ohm
Features	General Purpose
Manufacturer Size Code	E
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Size / Dimension [diameter]	7.11 mm
Size / Dimension [diameter]	0.28 in
Size / Dimension [z]	13.46 mm
Size / Dimension [z]	0.53 in
Tolerance	10 %
Type	Molded
Voltage - Rated	50 VDC

T322E Series

Part	Tolerance	ESR (Equivalent Series Resistance)	Features	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Mounting Type	Type	Capacitance	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Manufacturer Size Code	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]
KEMET T322E157K006AS	10 %	900 mOhm	General Purpose	-55 °C	125 °C	Axial	Through Hole	Molded	150 µF	13.46 mm	0.53 in	7.11 mm	0.28 in	6 VDC	E
KEMET T322E226K035AT	10 %	1.3 Ohm	General Purpose	-55 °C	125 °C	Axial	Through Hole	Molded	22 µF	13.46 mm	0.53 in	7.11 mm	0.28 in	35 V	E
KEMET T322E336K020AS	10 %	1.4 Ohm	General Purpose	-55 °C	125 °C	Axial	Through Hole	Molded	33 ÁF	13.46 mm	0.53 in	7.11 mm	0.28 in	20 V	E
KEMET T322E227K006AS	10 %	900 mOhm	General Purpose	-55 °C	125 °C	Axial	Through Hole	Molded	220 µF	13.46 mm	0.53 in	7.11 mm	0.28 in	6 VDC	E
KEMET T322E106K050AS	10 %	1.6 Ohm	General Purpose	-55 °C	125 °C	Axial	Through Hole	Molded	10 µF	13.46 mm	0.53 in	7.11 mm	0.28 in	50 VDC	E
KEMET T322E276K035AT	10 %	1.3 Ohm	General Purpose	-55 °C	125 °C	Axial	Through Hole	Molded	27 µF	13.46 mm	0.53 in	7.11 mm	0.28 in	35 V	E
KEMET T322E226J025AS	5 %	1.5 Ohm	General Purpose	-55 °C	125 °C	Axial	Through Hole	Molded	22 µF				7.11 mm	25 VDC	E	0.28 in	0.28 in	7.11 mm
KEMET T322E226K025AT	10 %	1.5 Ohm	General Purpose	-55 °C	125 °C	Axial	Through Hole	Molded	22 µF	13.46 mm	0.53 in	7.11 mm	0.28 in	25 VDC	E
KEMET T322E157K010AT	10 %	800 mOhm	General Purpose	-55 °C	125 °C	Axial	Through Hole	Molded	150 µF	13.46 mm	0.53 in	7.11 mm	0.28 in	10 V	E
KEMET T322E566K015AS	10 %	1.3 Ohm	General Purpose	-55 °C	125 °C	Axial	Through Hole	Molded	56 µF	13.46 mm	0.53 in	7.11 mm	0.28 in	15 V	E

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.10
		10	$ 14.89
		50	$ 12.88
		100	$ 11.59
		500	$ 10.71
Newark	Each	1	$ 9.37
		10	$ 9.29
		30	$ 9.13
		50	$ 8.97
		100	$ 8.81
