Q-0K021000R.75M

Active

Amphenol Custom Cable

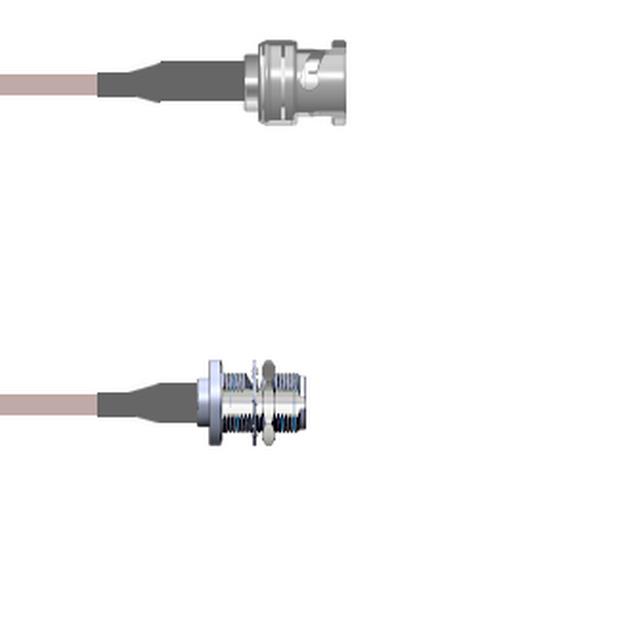

CBL ASSY BNC-NTYPE PL-JK 29.53"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0K021000R.75M

Active

Amphenol Custom Cable

CBL ASSY BNC-NTYPE PL-JK 29.53"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0K021000R.75M

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	BNC to N-Type

Q-0K0210 Series

Part	Overall Impedance	1st Connector Mounting Type	2nd Connector Mounting Type	2nd Contact Gender	Cable Type	Frequency - Max [Max]	1st Contact Gender	2nd Connector	1st Connector	Features	Length	Length	Length	Color	2nd Connector Mounting Feature	Style	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-0K021000R002M	50 Ohms	Free Hanging (In-Line)	Panel Mount	Female	RG-316 DB	4 GHz	Male	N-Type Jack	BNC Plug	Shielded	6.6 ft	78.7 in	2 m	Copper	Bulkhead - Front Side Nut	BNC to N-Type
Amphenol Custom Cable Q-0K021000R012i	50 Ohms	Free Hanging (In-Line)	Panel Mount	Female	RG-316 DB	4 GHz	Male	N-Type Jack	BNC Plug	Shielded		12 "	304.8 mm	Copper	Bulkhead - Front Side Nut	BNC to N-Type
Amphenol Custom Cable Q-0K021000R1.5M	50 Ohms	Free Hanging (In-Line)	Panel Mount	Female	RG-316 DB	4 GHz	Male	N-Type Jack	BNC Plug	Shielded	4.9 ft	59.1 in	1.5 m	Copper	Bulkhead - Front Side Nut	BNC to N-Type
Amphenol Custom Cable Q-0K021000R.25M	50 Ohms	Free Hanging (In-Line)	Panel Mount	Female	RG-316 DB	4 GHz	Male	N-Type Jack	BNC Plug	Shielded				Copper	Bulkhead - Front Side Nut	BNC to N-Type	9.843 "	250 mm
Amphenol Custom Cable Q-0K021000R018i	50 Ohms	Free Hanging (In-Line)	Panel Mount	Female	RG-316 DB	4 GHz	Male	N-Type Jack	BNC Plug	Shielded				Copper	Bulkhead - Front Side Nut	BNC to N-Type		457.2 mm	457.2 mm
Amphenol Custom Cable Q-0K021000R.75M	50 Ohms	Free Hanging (In-Line)	Panel Mount	Female	RG-316 DB	4 GHz	Male	N-Type Jack	BNC Plug	Shielded		29.53 "	750 mm	Copper	Bulkhead - Front Side Nut	BNC to N-Type
Amphenol Custom Cable Q-0K021000R048i	50 Ohms	Free Hanging (In-Line)	Panel Mount	Female	RG-316 DB	4 GHz	Male	N-Type Jack	BNC Plug	Shielded	4 ft	48 in	1200 mm	Copper	Bulkhead - Front Side Nut	BNC to N-Type
Amphenol Custom Cable Q-0K021000R001M	50 Ohms	Free Hanging (In-Line)	Panel Mount	Female	RG-316 DB	4 GHz	Male	N-Type Jack	BNC Plug	Shielded	3.3 ft	39.4 in	1 m	Copper	Bulkhead - Front Side Nut	BNC to N-Type
Amphenol Custom Cable Q-0K021000R009i	50 Ohms	Free Hanging (In-Line)	Panel Mount	Female	RG-316 DB	4 GHz	Male	N-Type Jack	BNC Plug	Shielded		9 "	228.6 mm	Copper	Bulkhead - Front Side Nut	BNC to N-Type
Amphenol Custom Cable Q-0K021000R108i	50 Ohms	Free Hanging (In-Line)	Panel Mount	Female	RG-316 DB	4 GHz	Male	N-Type Jack	BNC Plug	Shielded	9 ft	108 in	2.7 m	Copper	Bulkhead - Front Side Nut	BNC to N-Type

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 125.00
		25	$ 122.53
		50	$ 120.06
		100	$ 117.58
		250	$ 115.11

Description

General part information

Q-0K0210 Series

Cable Assembly Coaxial BNC to N-Type RG-316 DB 29.53" (750.00mm)

Documents

Technical documentation and resources

No documents available
