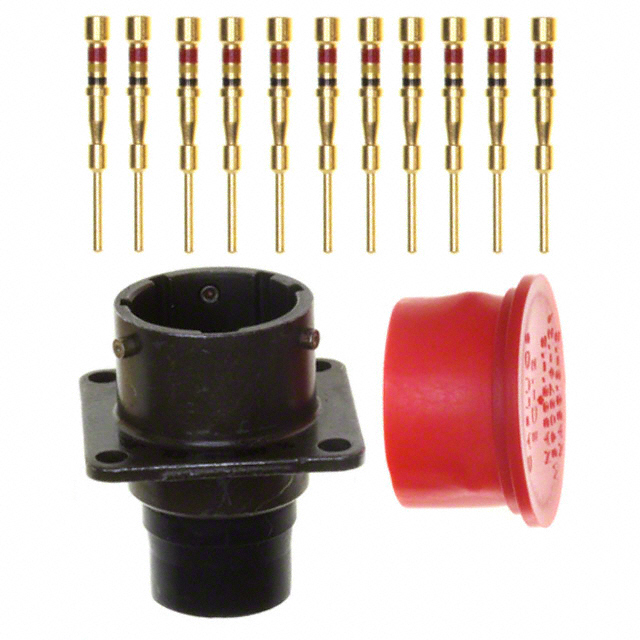

MS3122E-12-10P
ActiveAmphenol Industrial Operations
CONN RCPT MALE 10POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3122E-12-10P
ActiveAmphenol Industrial Operations
CONN RCPT MALE 10POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3122E-12-10P | MS3122E12 Series |
|---|---|---|
| - | - | |
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins, Receptacle Housing |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | - | Circular |
| Contact Size | - | 16 - 20 |
| Contact Type | - | Crimp |
| Current Rating (Amps) | - | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Grade | Military | Military |
| Housing Color | - | Olive Drab |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Flange | Flange |
| Note | - | Contacts Not Included |
| Number of Positions | 10 | 8 - 10 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N, W |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium, Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | - | 12-8, 12-3 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Type | - | For Male Pins, For Female Sockets |
| Voltage Rating | - | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 53.02 | |
| 10 | $ 48.66 | |||
| 100 | $ 42.73 | |||
MS3122E12 Series
RECEPT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert | Contact Material | Shell Material | Mounting Feature | Grade | Ingress Protection | Contact Finish - Mating | Fastening Type | Shell Finish | Termination | Orientation | Number of Positions | Qualification | Insert Material | Color | Primary Material | Applications | Shielding | Connector Type | Contact Shape | Contact Type | Housing Color | Note | Contact Size | Type | Current Rating (Amps) | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3122E12-3PY | |||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3122E12-8P | -55 °C | 125 °C | 12-8 | Copper Alloy | Aluminum | Flange | Military | Environment Resistant | Gold | Bayonet Lock | Olive Drab Chromate over Cadmium | Crimp | N | 8 | MIL-DTL-26482 Series I | Neoprene | Olive Drab | Metal | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Unshielded | Male Pins, Receptacle | ||||||||
Amphenol Industrial Operations MS3122E12-3PLC | -55 °C | 125 °C | 12-3 | Aluminum | Flange | Military | Environment Resistant | Bayonet Lock | Chromate over Cadmium | N | MIL-DTL-26482 Series I | Neoprene | Unshielded | Receptacle Housing | Circular | Crimp | Olive Drab | Contacts Not Included | 16 | For Male Pins | |||||||||
Amphenol Industrial Operations MS3122E12-3S(LC) | |||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3122E12-10SZ | |||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3122E12-8P(LC) | |||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3122E12-8S(LC) | |||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3122E-12-10P | -55 °C | 125 °C | Copper Alloy | Aluminum | Flange | Military | Environment Resistant | Gold | Bayonet Lock | Olive Drab Chromate over Cadmium | Crimp | N | 10 | MIL-DTL-26482 Series I | Neoprene | Olive Drab | Metal | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Unshielded | Male Pins, Receptacle | |||||||||
Amphenol Industrial Operations MS3122E12-3SY | |||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3122E12-10SY |
Description
General part information
MS3122E12 Series
10 Position Circular Connector Receptacle, Male Pins Crimp
