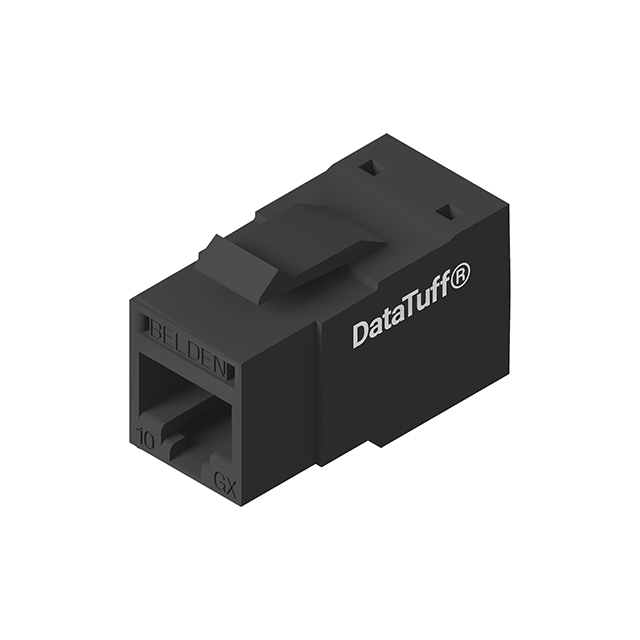

RVAIJ2UBK-S1

Active

Belden Inc.

INDUS REVCONN CAT6A JACK BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RVAIJ2UBK-S1

Active

Belden Inc.

INDUS REVCONN CAT6A JACK BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RVAIJ2UBK-S1

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Nickel
Features	Latch Lock
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
LED Color	Does Not Contain LED
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Orientation	Straight
Ratings	Cat6a
Shielding	Unshielded
Tab Direction	Down
Termination	IDC

RVAIJ2 Series

Part	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Connector Type	Contact Finish	Shielding	Ratings	Features	LED Color	Number of Positions/Contacts	Contact Finish Thickness	Contact Finish Thickness	Tab Direction	Contact Material	Number of Ports	Housing Material	Number of Rows
Belden Inc. RVAIJ2UEW-B24	Straight	-40 °C	70 °C	IDC	Jack	Gold	Unshielded	Cat6a	Latch Lock	Does Not Contain LED	8p8c (RJ45 Ethernet)	50 µin	1.27 µm	Down	Nickel	1	Polybutylene Terephthalate (PBT) Glass Filled	1
Belden Inc. RVAIJ2SME-S1	Straight	-40 °C	70 °C	IDC	Jack	Gold	Shielded	Cat6a		Does Not Contain LED	8p8c (RJ45 Ethernet)	50 µin	1.27 µm	Down	Nickel	1	Zinc Die Cast Nickel Plated	1
Belden Inc. RVAIJ2UTE-B24	Straight	-40 °C	70 °C	IDC	Jack	Gold	Unshielded	Cat6a	Latch Lock	Does Not Contain LED	8p8c (RJ45 Ethernet)	50 µin	1.27 µm	Down	Nickel	1	Polybutylene Terephthalate (PBT) Glass Filled	1
Belden Inc. RVAIJ2SME-B24	Straight	-40 °C	70 °C	IDC	Jack	Gold	Shielded	Cat6a		Does Not Contain LED	8p8c (RJ45 Ethernet)	50 µin	1.27 µm	Down	Nickel	1	Zinc Die Cast Nickel Plated	1
Belden Inc. RVAIJ2UBK-S1	Straight	-40 °C	70 °C	IDC	Jack	Gold	Unshielded	Cat6a	Latch Lock	Does Not Contain LED	8p8c (RJ45 Ethernet)	50 µin	1.27 µm	Down	Nickel	1	Polybutylene Terephthalate (PBT) Glass Filled	1
Belden Inc. RVAIJ2UOR-B24	Straight	-40 °C	70 °C	IDC	Jack	Gold	Unshielded	Cat6a	Latch Lock	Does Not Contain LED	8p8c (RJ45 Ethernet)	50 µin	1.27 µm	Down	Nickel	1	Polybutylene Terephthalate (PBT) Glass Filled	1
Belden Inc. RVAIJ2UBK-B24	Straight	-40 °C	70 °C	IDC	Jack	Gold	Unshielded	Cat6a	Latch Lock	Does Not Contain LED	8p8c (RJ45 Ethernet)	50 µin	1.27 µm	Down	Nickel	1	Polybutylene Terephthalate (PBT) Glass Filled	1
Belden Inc. RVAIJ2UEW-S1	Straight	-40 °C	70 °C	IDC	Jack	Gold	Unshielded	Cat6a	Latch Lock	Does Not Contain LED	8p8c (RJ45 Ethernet)	50 µin	1.27 µm	Down	Nickel	1	Polybutylene Terephthalate (PBT) Glass Filled	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 55.04
		10	$ 50.50
		25	$ 48.56
		50	$ 46.94
		100	$ 44.35

Description

General part information

RVAIJ2 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Unshielded Cat6a
