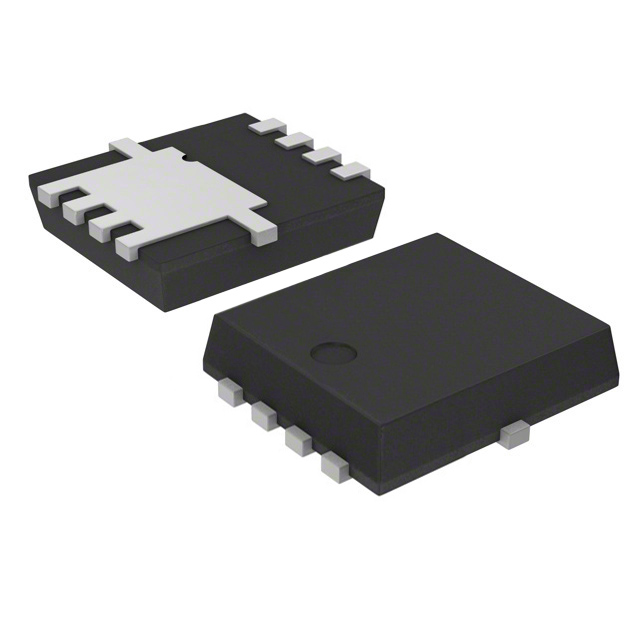

STL8N80K5 - 8-PowerVDFN

STL8N80K5

Active
STMicroelectronics

N-CHANNEL 800 V, 0.8 OHM TYP., 4.5 A MDMESH K5 POWER MOSFET IN A POWERFLAT 5X6 VHV PACKAGE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDatasheet+18
STL8N80K5 - 8-PowerVDFN

STL8N80K5

Active
STMicroelectronics

N-CHANNEL 800 V, 0.8 OHM TYP., 4.5 A MDMESH K5 POWER MOSFET IN A POWERFLAT 5X6 VHV PACKAGE

Deep-Dive with AI

DocumentsDatasheetDatasheet+18

Technical Specifications

Parameters and characteristics for this part

SpecificationSTL8N80K5
Current - Continuous Drain (Id) @ 25°C4.5 A
Drain to Source Voltage (Vdss)800 V
Drive Voltage (Max Rds On, Min Rds On)10 V
FET TypeN-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]16.5 nC
Input Capacitance (Ciss) (Max) @ Vds [Max]450 pF
Mounting TypeSurface Mount
Operating Temperature [Max]150 °C
Operating Temperature [Min]-55 °C
Package / Case8-PowerVDFN
Power Dissipation (Max)42 W
Rds On (Max) @ Id, Vgs950 mOhm
Supplier Device PackagePowerFlat™ (5x6)
TechnologyMOSFET (Metal Oxide)
Vgs (Max)30 V
Vgs(th) (Max) @ Id5 V
