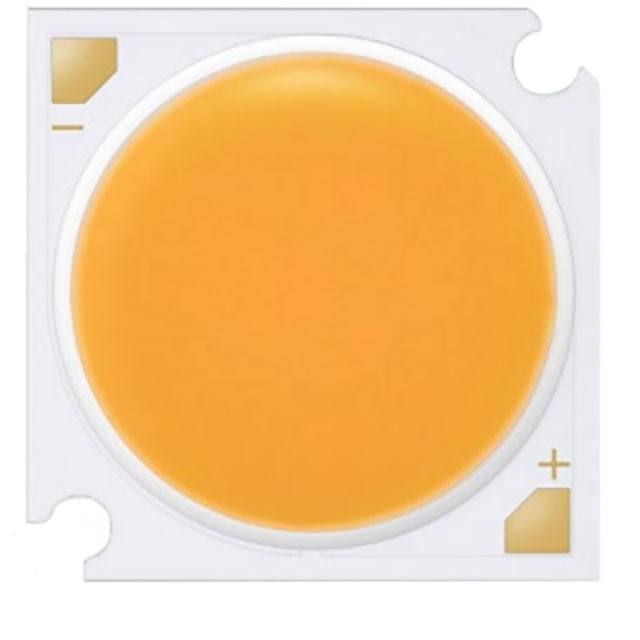

SPHWHAHDNM271ZT3DB

Active

Samsung Semiconductor, Inc.

LED COB D GEN2 NEUT WHT SQ 4000K

Deep-Dive with AI

Search across all available documentation for this part.

SPHWHAHDNM271ZT3DB

Active

Samsung Semiconductor, Inc.

LED COB D GEN2 NEUT WHT SQ 4000K

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 8.81
		10	$ 6.39
		160	$ 5.92

Description

General part information

SPHWHAHDNM271 Series

LED Lighting COBs Engines Modules Chip On Board (COB) COB D Gen2 Plus White, Neutral Square

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SPHWHAHDNM271ZT3DB	SPHWHAHDNM271 Series

CCT (K)	4000 K	2700 - 4000 K
Color	Neutral, White	Neutral, White, Warm, Cool
Configuration	Square	Square
CRI (Color Rendering Index)	90	90
Current - Max [Max]	3.24 A	3.24 - 4.14 A
Current - Test	1.62 A	1.62 A
Height [z]	1.5 mm	1.5 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	22 mm	22 mm
Lumens/Watt @ Current - Test	159 lm/W	121 - 159 lm/W
Luminous Flux @ Current/Temperature	13123 lm	10157 - 13196 lm
Size / Dimension [x]	28 mm	28 mm
Size / Dimension [y]	28 mm	28 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	115 °	115 °
Voltage - Forward (Vf) (Typ)	51.1 V	50 - 52 V

SPHWHAHDNM271 Series

LED COB D GEN2 NEUT WHT SQ 4000K

Part	CRI (Color Rendering Index)	Temperature - Test	CCT (K)	Configuration	Light Emitting Surface (LES) [diameter]	Type	Luminous Flux @ Current/Temperature	Size / Dimension [y]	Size / Dimension [x]	Lumens/Watt @ Current - Test	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Viewing Angle	Height [z]	Current - Test	Lens Type	Color
Samsung Semiconductor, Inc. SPHWHAHDNM271ZT3DB	90	85 °C	4000 K	Square	22 mm	Chip On Board (COB)	13123 lm	28 mm	28 mm	159 lm/W	3.24 A	51.1 V	115 °	1.5 mm	1.62 A	Flat	Neutral, White
Samsung Semiconductor, Inc. SPHWHAHDNM271ZV3DC	90	85 °C	3000 K	Square	22 mm	Chip On Board (COB)	11139 lm	28 mm	28 mm	137 lm/W	3.24 A		115 °	1.5 mm	1.62 A	Flat	Warm, White
Samsung Semiconductor, Inc. SPHWHAHDNM271ZV2D3	90	85 °C	3000 K	Square	22 mm	Chip On Board (COB)	11195 lm	28 mm	28 mm	138 lm/W	4.14 A	50 V	115 °	1.5 mm	1.62 A	Flat	Warm, White
Samsung Semiconductor, Inc. SPHWHAHDNM271ZR3DC	90	85 °C		Square	22 mm	Chip On Board (COB)	11974 lm	28 mm	28 mm	147 lm/W	3.24 A		115 °	1.5 mm	1.62 A	Flat	Cool, White
Samsung Semiconductor, Inc. SPHWHAHDNM271ZT3D2	90	85 °C	4000 K	Square	22 mm	Chip On Board (COB)	11247 lm	28 mm	28 mm		4.14 A	52 V	115 °	1.5 mm	1.62 A	Flat	Neutral, White
Samsung Semiconductor, Inc. SPHWHAHDNM271ZT2D3	90	85 °C	4000 K	Square	22 mm	Chip On Board (COB)	11766 lm	28 mm	28 mm	145 lm/W	4.14 A	50 V	115 °	1.5 mm	1.62 A	Flat	Neutral, White
Samsung Semiconductor, Inc. SPHWHAHDNM271ZR3DB	90	85 °C		Square	22 mm	Chip On Board (COB)	13196 lm	28 mm	28 mm	159 lm/W	3.24 A	51.1 V	115 °	1.5 mm	1.62 A	Flat	Cool, White
Samsung Semiconductor, Inc. SPHWHAHDNM271ZW2D3	90	85 °C	2700 K	Square	22 mm	Chip On Board (COB)		28 mm	28 mm	131 lm/W	4.14 A	50 V	115 °	1.5 mm	1.62 A	Flat	Warm, White
Samsung Semiconductor, Inc. SPHWHAHDNM271ZU3D2	90	85 °C	3500 K	Square	22 mm	Chip On Board (COB)	11004 lm	28 mm	28 mm	131 lm/W	4.14 A	52 V	115 °	1.5 mm	1.62 A	Flat	Warm, White
Samsung Semiconductor, Inc. SPHWHAHDNM271ZT3DC	90	85 °C	4000 K	Square	22 mm	Chip On Board (COB)	11743 lm	28 mm	28 mm	144 lm/W	3.24 A		115 °	1.5 mm	1.62 A	Flat	Neutral, White
