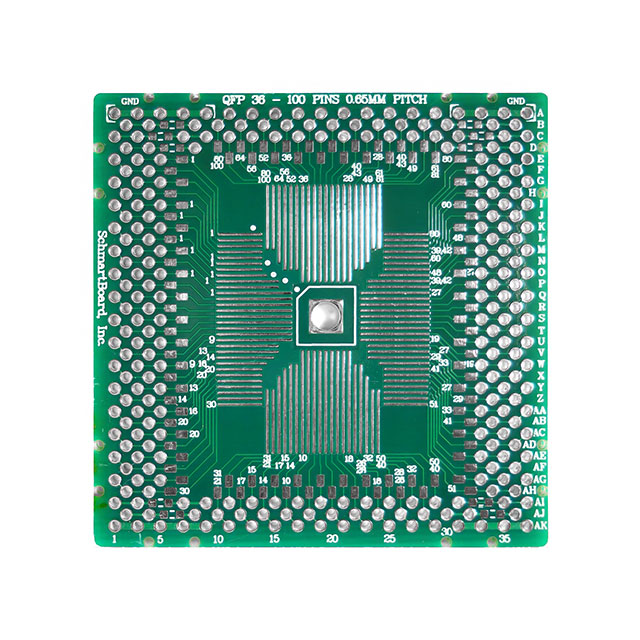

202-0010-02

Active

Schmartboard, Inc.

QFP, 36-100 PINS 0.65MM PITCH, 2

Search across all available documentation for this part.

Active

Schmartboard, Inc.

QFP, 36-100 PINS 0.65MM PITCH, 2

Technical Specifications

Parameters and characteristics for this part

Specification	202-0010-02

Number of Positions	100
Package Accepted	TQFP, QFP, PQFP
Pitch [x]	0.026 in
Pitch [x]	0.65 mm
Proto Board Type	SMD to Plated Through Hole Board
Size / Dimension [x]	50.8 mm
Size / Dimension [x]	2 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm

QFP, 36-100 PINS 0.65MM PITCH, 2

Part	Package Accepted	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Proto Board Type	Pitch [x]	Pitch [x]	Number of Positions
Schmartboard, Inc. 202-0010-02	PQFP, QFP, TQFP	2 in	50.8 mm	50.8 mm	2 in	SMD to Plated Through Hole Board	0.026 in	0.65 mm	100

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 10.00

General part information

QFP, 36-100 PINS 0.65MM PITCH, 2

Technical documentation and resources
