837-042-558-603

Active

EDAC Inc.

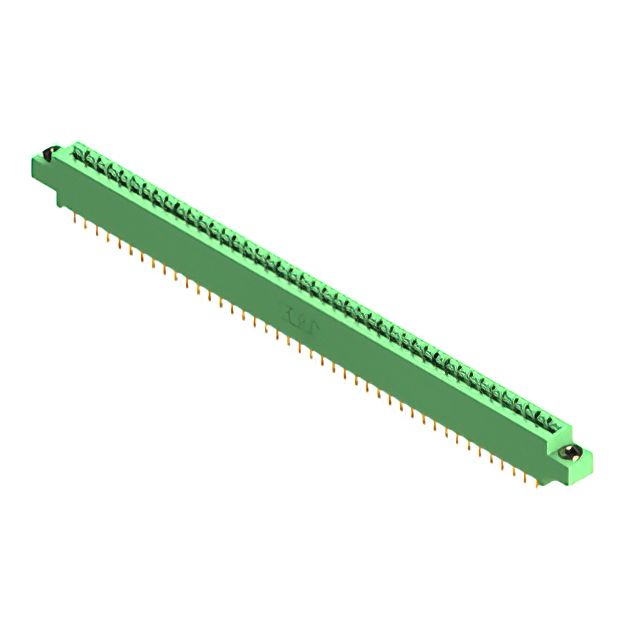

CONN EDGE SGL FMALE 42POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

837-042-558-603

Active

EDAC Inc.

CONN EDGE SGL FMALE 42POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	837-042-558-603

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Floating Bobbin
Flange Feature [diameter]	2.95 mm
Flange Feature [diameter]	0.116 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Right Angle
Number of Positions	42
Number of Positions/Bay/Row [custom]	42
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

837-042 Series

...

Part	Contact Finish	Gender	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Termination Rows	Color	Mounting Type	Termination	Number of Positions	Number of Rows	Card Type	Features	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Material - Insulation	Read Out	Pitch [x]	Pitch [x]	Flange Feature	Contact Type	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Number of Positions/Bay/Row [custom]
EDAC Inc. 837-042-560-207	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	2	Green	Board Edge Straddle Mount	Solder	42	2	Non Specified - Dual Edge	Card Extender	10 Áin	0.25 Ám	Copper Alloy	Diallyl Phthalate (DAP)	Dual	0.156 in	3.96 mm	Flush Mount M3 Threaded Insert Top Opening	Cantilever
EDAC Inc. 837-042-560-802	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	2	Green	Board Edge Straddle Mount	Solder	42	2	Non Specified - Dual Edge	Card Extender	10 Áin	0.25 Ám	Copper Alloy	Diallyl Phthalate (DAP)	Dual	0.156 in	3.96 mm		Cantilever	3.25 mm	0.128 in
EDAC Inc. 837-042-544-802	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	2	Green	Through Hole	Wire Wrap	42	2	Non Specified - Dual Edge		10 Áin	0.25 Ám	Copper Alloy	Diallyl Phthalate (DAP)	Dual	0.156 in	3.96 mm		Cantilever	3.25 mm	0.128 in
EDAC Inc. 837-042-521-208	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	2	Green	Through Hole	Solder	42	2	Non Specified - Dual Edge		10 Áin	0.25 Ám	Copper Alloy	Diallyl Phthalate (DAP)	Dual	0.156 in	3.96 mm	4-40 Flush Mount Threaded Insert Top Opening	Cantilever
EDAC Inc. 837-042-524-807	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	2	Green	Through Hole	Solder	42	2	Non Specified - Dual Edge		10 Áin	0.25 Ám	Copper Alloy	Diallyl Phthalate (DAP)	Dual	0.156 in	3.96 mm	M3 Threaded Insert Top Mount Opening	Cantilever
EDAC Inc. 837-042-558-204	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	2	Green	Through Hole Right Angle	Solder	42	2	Non Specified - Dual Edge		10 Áin	0.25 Ám	Copper Alloy	Diallyl Phthalate (DAP)	Dual	0.156 in	3.96 mm	Flush Mount Top Opening Unthreaded	Cantilever			3.96 mm	0.156 in
EDAC Inc. 837-042-521-804	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	2	Green	Through Hole	Solder	42	2	Non Specified - Dual Edge		10 Áin	0.25 Ám	Copper Alloy	Diallyl Phthalate (DAP)	Dual	0.156 in	3.96 mm	Top Mount Opening Unthreaded	Cantilever			3.96 mm	0.156 in
EDAC Inc. 837-042-520-102	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	1	Green	Through Hole	Solder	42	1	Non Specified - Single Edge		10 Áin	0.25 Ám	Copper Alloy	Diallyl Phthalate (DAP)	Single	0.156 in	3.96 mm	Flush Mount Top Opening Unthreaded	Cantilever			3.25 mm	0.128 "	42
EDAC Inc. 837-042-558-603	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	1	Green	Through Hole Right Angle	Solder	42	1	Non Specified - Single Edge		10 Áin	0.25 Ám	Copper Alloy	Diallyl Phthalate (DAP)	Single	0.156 in	3.96 mm	Floating Bobbin Top Mount Opening	Cantilever			2.95 mm	0.116 in	42
EDAC Inc. 837-042-540-608	Gold	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	1	Green	Through Hole	Wire Wrap	42	1	Non Specified - Single Edge		10 Áin	0.25 Ám	Copper Alloy	Diallyl Phthalate (DAP)	Single	0.156 in	3.96 mm	4-40 Threaded Insert Top Mount Opening	Cantilever					42

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 92.61
Newark	Each	1	$ 106.91
		100	$ 67.64
		250	$ 60.82
		500	$ 56.86
		1000	$ 47.75

Description

General part information

837-042 Series

42 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
