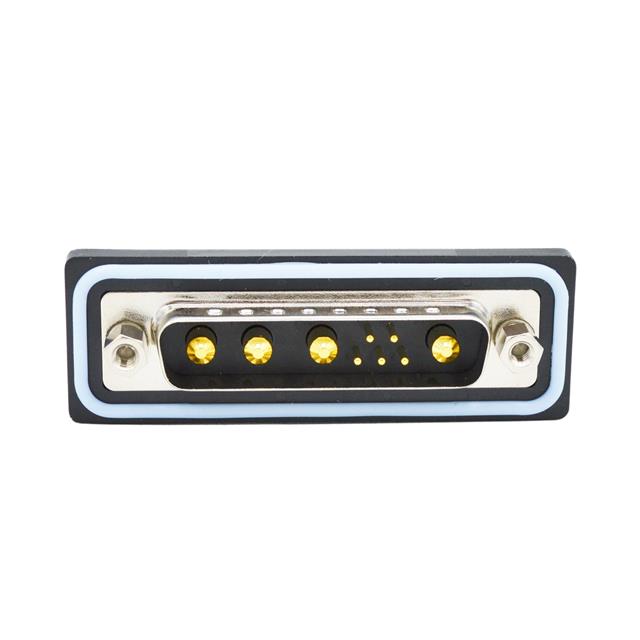

CDFS9W4103L411
ActiveMH Connectors
CONN D-SUB PLUG 9POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CDFS9W4103L411
ActiveMH Connectors
CONN D-SUB PLUG 9POS PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CDFS9W4103L411 |
|---|---|
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal and Power |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Grounding Indents |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 9 |
| Number of Positions [custom] | 4 |
| Number of Positions [custom] | 5 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 3 (DB, B) - 9W4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 22.12 | |
| 10 | $ 17.04 | |||
| 25 | $ 15.43 | |||
| 40 | $ 14.68 | |||
| 80 | $ 13.65 | |||
| 230 | $ 12.28 | |||
| 440 | $ 11.53 | |||
Description
General part information
CDFS9W4 Series
9 (5 + 4 Power) Position D-Sub, Combo Plug, Male Pins Connector
