KAP1103E

Active

E-Switch

SWITCH: DIP-SWITCH; OFF-ON; 0.1A/50VDC; POS: 2; THT; -40÷85°C

Search across all available documentation for this part.

Active

E-Switch

SWITCH: DIP-SWITCH; OFF-ON; 0.1A/50VDC; POS: 2; THT; -40÷85°C

Technical Specifications

Parameters and characteristics for this part

Specification	KAP1103E

Actuator Level	Raised
Actuator Type	Piano
Body Material	Polybutylene Terephthalate (PBT), Glass Filled
Circuit	SPST
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	25 mA
Electrical Life	2000 Steps
Height Above Board	10.2 mm
Height Above Board	0.402 in
Length	9.17 mm
Length	0.361 "
Mechanical Life	2000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	24 VDC
Washable	False

Part	Pitch [x]	Pitch	Pitch [x]	Actuator Type	Length	Length	Mechanical Life	Contact Finish	Height Above Board	Height Above Board	Circuit	Electrical Life	Washable	Voltage Rating	Termination Style	Actuator Level	Contact Material	Current Rating (Amps)	Mounting Type	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Features
E-Switch KAP1103E	0.1 in	Full	2.54 mm	Piano	9.17 mm	0.361 "	2000 Cycles	Gold	10.2 mm	0.402 in	SPST	2000 Steps		24 VDC	PC Pin	Raised	Phosphor Bronze	25 mA	Through Hole Right Angle	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-40 °C
E-Switch KAP1103RT	0.1 in	Full	2.54 mm	Piano	9.17 mm	0.361 "	2000 Cycles	Gold	10.2 mm	0.402 in	SPST	2000 Steps		24 VDC	PC Pin	Flush Recessed	Phosphor Bronze	25 mA	Through Hole Right Angle	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-40 °C	Tape Seal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

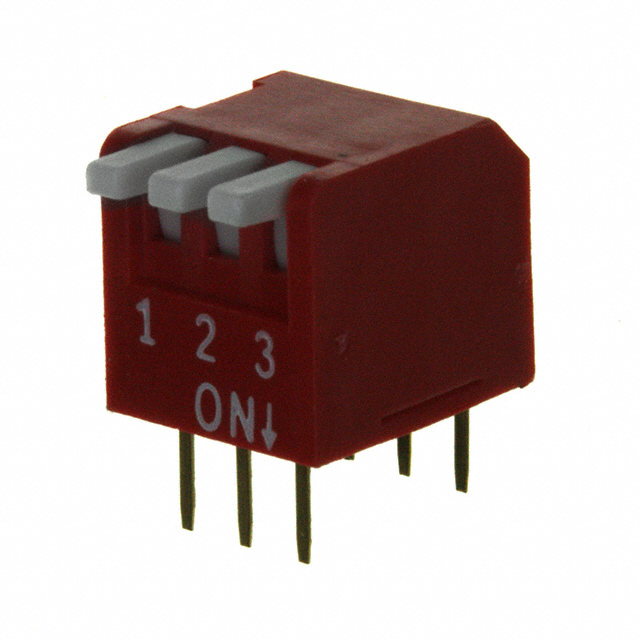

Dip Switch SPST 3 Position Through Hole, Right Angle Piano Actuator 25mA 24VDC
