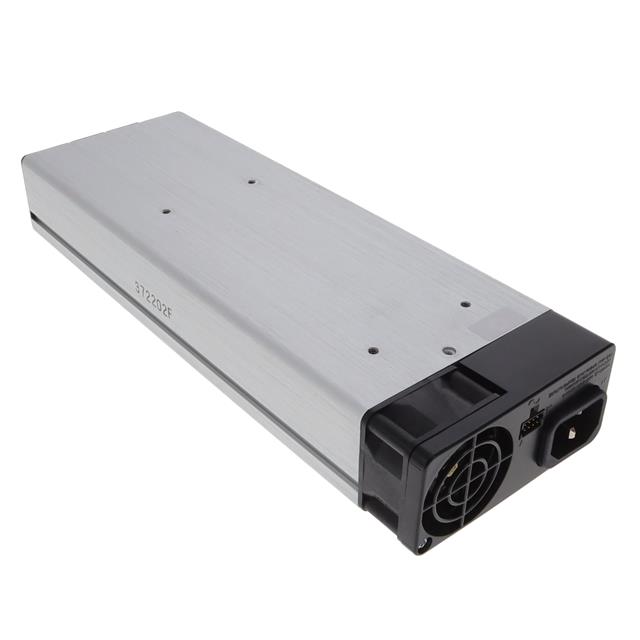

UX4S0

Active

EXCELSYS / Advanced Energy

CONFIG PWR CHASSIS 600W 4 SLOT

Search across all available documentation for this part.

Active

EXCELSYS / Advanced Energy

CONFIG PWR CHASSIS 600W 4 SLOT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UX4S0	UX4 Series

Approval Agency	CE	CE, cURus, CE
Efficiency	91 %	90 - 91 %
Features	Ruggedized, Fan Fail, Reverse Fan, Temperature Alarm, Conformal Coating	Ruggedized, Fan Fail, Reverse Fan, Temperature Alarm, Conformal Coating
Height [z]	40.4 mm	40.4 mm
Height [z]	1.59 in	1.59 in
Number of Positions	4	4
Power (Watts)	600 W	600 W
Size / Dimension [x]	10.24 "	10.24 "
Size / Dimension [x]	260 mm	260 mm
Size / Dimension [y]	89 mm	89 mm
Size / Dimension [y]	3.5 in	3.5 in
Type	Medical	Medical
Voltage - Input [Max]	264 VAC, 380 VDC	264 - 380 VAC
Voltage - Input [Min]	120 VDC, 85 VAC	85 - 120 VDC
Voltage - Isolation	4000 V	4000 V

CONFIG POWER CHASSIS 600W 4 SLOT

Part	Efficiency	Approval Agency	Power (Watts)	Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Features	Number of Positions	Voltage - Isolation	Height [z]	Height [z]	Voltage - Input [Max]	Voltage - Input [Min]
EXCELSYS / Advanced Energy UX4R	90 %	CE, cURus	600 W	Medical	10.24 "	260 mm	89 mm	3.5 in	Ruggedized	4	4000 V	40.4 mm	1.59 in
EXCELSYS / Advanced Energy UX4S0	91 %	CE	600 W	Medical	10.24 "	260 mm	89 mm	3.5 in	Conformal Coating, Fan Fail, Reverse Fan, Ruggedized, Temperature Alarm	4	4000 V	40.4 mm	1.59 in	264 VAC, 380 VDC	85 VAC, 120 VDC
EXCELSYS / Advanced Energy UX4-02	90 %	CE, cURus	600 W	Medical	10.24 "	260 mm	89 mm	3.5 in	Fan Fail, Temperature Alarm	4	4000 V	40.4 mm	1.59 in
EXCELSYS / Advanced Energy UX4-06	90 %	CE	600 W	Medical	10.24 "	260 mm	89 mm	3.5 in	Fan Fail, Temperature Alarm	4	4000 V	40.4 mm	1.59 in
EXCELSYS / Advanced Energy UX4C04	90 %	CE, cURus	600 W	Medical	10.24 "	260 mm	89 mm	3.5 in	Fan Fail, Temperature Alarm	4	4000 V	40.4 mm	1.59 in
EXCELSYS / Advanced Energy UX4-D0	90 %	CE	600 W	Medical	10.24 "	260 mm	89 mm	3.5 in	Fan Fail, Temperature Alarm	4	4000 V	40.4 mm	1.59 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

600 W 4 Slot AC DC Configurable Power Supply Chassis
