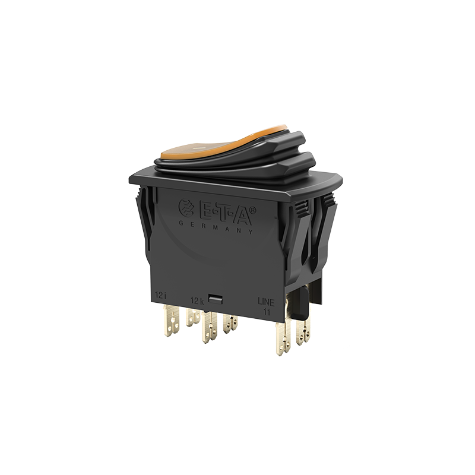

CIRCUIT BREAKERS THE 3120-N...4 IP65 RATED THERMAL CIRCUIT BREAKER/SWITCH COMBINATION UNITES OVERCURRENT PROTECTION AND THE FUNCTION OF AN ON/OFF SWITCH WITHIN A SINGLE COMPONENT. THE TRIP ELEMENT IS A THERMAL BIMETAL. TYPE 3120-N...4 IS IDEALLY SUITED F

Find alt

Alpha

3120-N524-P7T1-W15DY3-15A

Active

E-T-A

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

3120-N Series

Technical Specifications

Parameters and characteristics for this part

Specification	3120-N524-P7T1-W15DY3-15A

Actuator Type	Rocker
Approval Agency	IEC 60934, CSA C22.2 No 235, UL1077, GB 17701
Breaker Type	Thermal
Current Rating	15 A
Illumination	Orange
Illumination Voltage (Nominal)	115 V
Mounting Type	Panel Mount
Number of Poles	2
Voltage Rating - AC	415 VAC
Voltage Rating - DC	50 V

3120-N Series

...

Part	Illumination	Voltage Rating - AC	Voltage Rating - DC	Breaker Type	Approval Agency	Illumination Voltage (Nominal)	Number of Poles	Mounting Type	Actuator Type	Current Rating
E-T-A 3120-N521-P7T1-W19DG3-6A	Green	415 VAC	50 V	Thermal	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077	115 V	2	Panel Mount	Rocker	6 A
E-T-A 3120-N31A-H7T1-W12LY3-5A	White	415 VAC	50 V	Thermal	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077	115 V	1	Panel Mount	Rocker	5 A
E-T-A 3120-N524-P7T1-W02D-20A	None	415 VAC	50 V	Thermal	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077		2	Panel Mount	Rocker	20 A
E-T-A 3120-N311-P7T1-W15GY3-3A	Orange	240 V	50 V	Thermal Magnetic	CSA C22.2 No 235 EN 60934 GB 17701 IEC 60934 KC 60934 UL1077	115 V	1	Panel Mount Snap-In	Rocker	3 A
E-T-A 3120-N523-P7T1-W01L-6A	None	415 VAC	50 V	Thermal	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077		2	Panel Mount	Rocker	6 A
E-T-A 3120-N311-P7T1-W12LY3-16A	White	415 VAC	50 V	Thermal	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077	115 V	1	Panel Mount	Rocker	16 A
E-T-A 3120-N321-P7T1-W14DR3-12A	Red	250 V 415 VAC	50 V	Thermal	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077	115 V	2	Panel Mount	Rocker	12 A
E-T-A 3120-N323-P7T1-W19DG4-7A	Green	415 VAC	50 V	Thermal	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077	230 VAC	2	Panel Mount	Rocker	7 A
E-T-A 3120-N323-P7T1-W15DY3-10A	Orange	415 VAC	50 V	Thermal	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077	115 V	2	Panel Mount	Rocker	10 A
E-T-A 3120-N321-P7T1-W04L-10A	None	250 V 415 VAC	50 V	Thermal	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077		2	Panel Mount	Rocker	10 A
