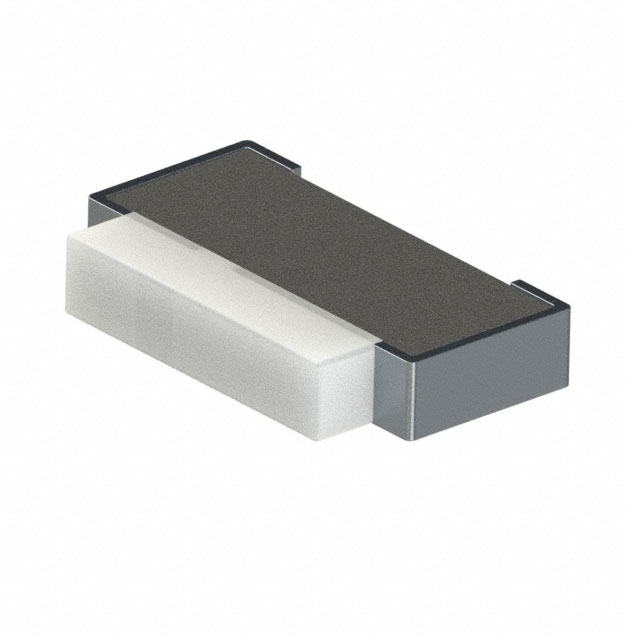

CL-482T-WS-SD-TS

Active

Citizen

LED WHITE SMD R/A

Search across all available documentation for this part.

Active

Citizen

LED WHITE SMD R/A

Technical Specifications

Parameters and characteristics commom to parts in this series

LED RED DIFFUSED 2SMD R/A

Part	Height (Max) [Max] [z]	Voltage - Forward (Vf) (Typ)	Color	Wavelength - Dominant	Size / Dimension [y]	Size / Dimension [x]	Lens Style	Mounting Type	Current - Test	Supplier Device Package	Lens Color	Configuration	Package / Case	Lens Size [x]	Lens Size [y]	Millicandela Rating	Lens Transparency
Citizen CL-482S-TR2-CD-TS	1.1 mm	2.1 V	Red	630 nm	0.3 mm	1.8 mm	Rectangle with Flat Top	Surface Mount, Right Angle	20 mA	2-SMD	Red	Standard	2-SMD, No Lead	1.4 mm	0.3 mm	80 mcd	Diffused
Citizen CL-482T-WS-SD-TS	0.3 mm	2.9 V	White		1 mm	1.8 mm	Rectangle with Flat Top	Surface Mount, Right Angle	5 mA			Standard	2-SMD, No Lead	1.8 mm	0.3 mm	115 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

White LED Indication - Discrete 2.9V 2-SMD, No Lead

Technical documentation and resources

No documents available
