Q-2X01O000R2.5M

Active

Amphenol Custom Cable

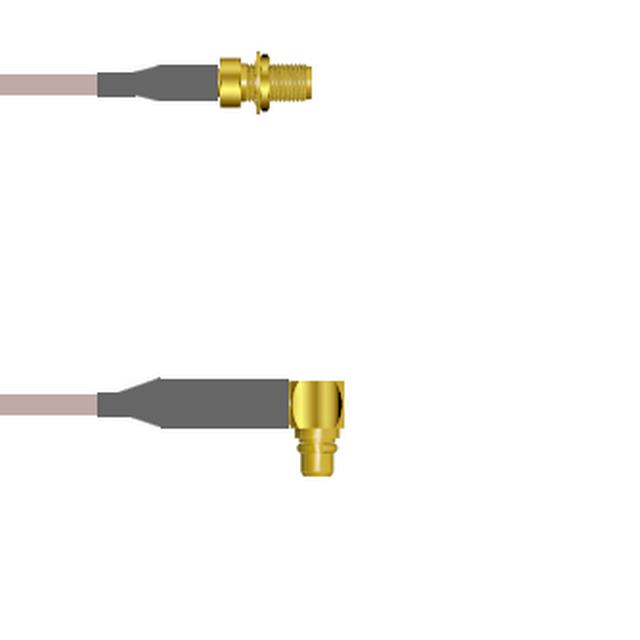

CBL ASSY SMA-MMCX JACK-PLUG 8.2'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2X01O000R2.5M

Active

Amphenol Custom Cable

CBL ASSY SMA-MMCX JACK-PLUG 8.2'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2X01O000R2.5M

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	MMCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316 DS
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	8.2 '
Length	98.4 in
Length	2.5 m
Overall Impedance	50 Ohms
Style	SMA to MMCX

Q-2X01O0 Series

Part	Style	1st Connector	1st Connector Mounting Feature	Features	Connector Impedance	Color	Cable Impedance	2nd Contact Gender	Overall Impedance	2nd Connector Mounting Type	Length	Length	1st Connector Mounting Type	Frequency - Max [Max]	Cable Type	2nd Connector	1st Contact Gender	Length
Amphenol Custom Cable Q-2X01O000R006I	SMA to MMCX	SMA Jack	Bulkhead - Front Side Nut	Shielded	50 Ohms	Copper	50 Ohms	Male	50 Ohms	Free Hanging (In-Line)	152.4 mm	6 in	Panel Mount	3 GHz	RG-316 DS	MMCX Plug Right Angle	Female
Amphenol Custom Cable Q-2X01O000R009I	SMA to MMCX	SMA Jack	Bulkhead - Front Side Nut	Shielded	50 Ohms	Copper	50 Ohms	Male	50 Ohms	Free Hanging (In-Line)	228.6 mm	9 "	Panel Mount	3 GHz	RG-316 DS	MMCX Plug Right Angle	Female
Amphenol Custom Cable Q-2X01O000R002M	SMA to MMCX	SMA Jack	Bulkhead - Front Side Nut	Shielded	50 Ohms	Copper	50 Ohms	Male	50 Ohms	Free Hanging (In-Line)	2 m	78.7 in	Panel Mount	3 GHz	RG-316 DS	MMCX Plug Right Angle	Female	6.6 ft
Amphenol Custom Cable Q-2X01O000R2.5M	SMA to MMCX	SMA Jack	Bulkhead - Front Side Nut	Shielded	50 Ohms	Copper	50 Ohms	Male	50 Ohms	Free Hanging (In-Line)	2.5 m	98.4 in	Panel Mount	3 GHz	RG-316 DS	MMCX Plug Right Angle	Female	8.2 '
Amphenol Custom Cable Q-2X01O000R003I	SMA to MMCX	SMA Jack	Bulkhead - Front Side Nut	Shielded	50 Ohms	Copper	50 Ohms	Male	50 Ohms	Free Hanging (In-Line)	76.2 mm	3 in	Panel Mount	3 GHz	RG-316 DS	MMCX Plug Right Angle	Female
Amphenol Custom Cable Q-2X01O000R001M	SMA to MMCX	SMA Jack	Bulkhead - Front Side Nut	Shielded	50 Ohms	Copper	50 Ohms	Male	50 Ohms	Free Hanging (In-Line)	1 m	39.4 in	Panel Mount	3 GHz	RG-316 DS	MMCX Plug Right Angle	Female	3.3 ft
Amphenol Custom Cable Q-2X01O000R003M	SMA to MMCX	SMA Jack	Bulkhead - Front Side Nut	Shielded	50 Ohms	Copper	50 Ohms	Male	50 Ohms	Free Hanging (In-Line)	3 m	118.1 in	Panel Mount	3 GHz	RG-316 DS	MMCX Plug Right Angle	Female	9.8 '
Amphenol Custom Cable Q-2X01O000R060I	SMA to MMCX	SMA Jack	Bulkhead - Front Side Nut	Shielded	50 Ohms	Copper	50 Ohms	Male	50 Ohms	Free Hanging (In-Line)	1.5 m	5 '	Panel Mount	3 GHz	RG-316 DS	MMCX Plug Right Angle	Female	5 ft
Amphenol Custom Cable Q-2X01O000R1.5M	SMA to MMCX	SMA Jack	Bulkhead - Front Side Nut	Shielded	50 Ohms	Copper	50 Ohms	Male	50 Ohms	Free Hanging (In-Line)	1.5 m	59.1 in	Panel Mount	3 GHz	RG-316 DS	MMCX Plug Right Angle	Female	4.9 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 300.38
		25	$ 279.44
		50	$ 258.49
		100	$ 240.54
		250	$ 225.59

Description

General part information

Q-2X01O0 Series

Cable Assembly Coaxial SMA to MMCX RG-316 DS 98.4" (2.5m) 8.2'

Documents

Technical documentation and resources

No documents available
