Description
General part information
CDR34 Series

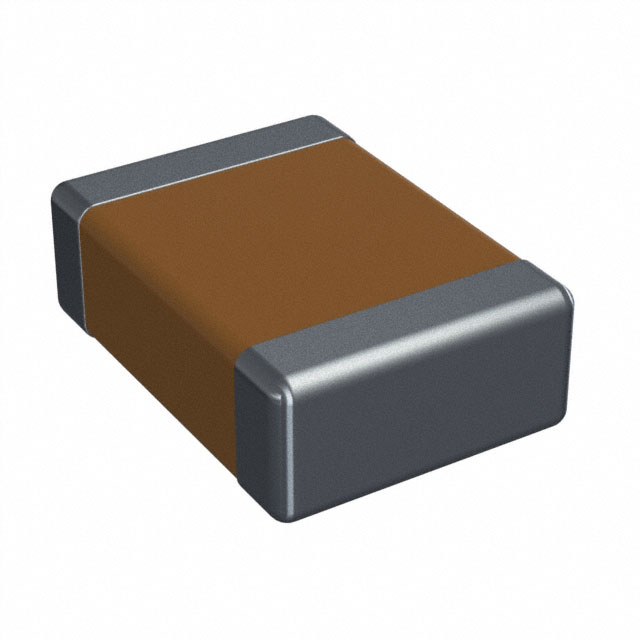

0.047 µF ±10% 100V Ceramic Capacitor BX 1812 (4532 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | CDR34BX473BKUS7185 |
|---|---|
| Applications | High Reliability |
| Capacitance | 47 nF |
| Failure Rate (Percent) | 0.001 % |
| Failure Rate Rating | S |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1812 (4532 Metric) |
| Size / Dimension Length | 0.177 in |
| Size / Dimension Width | 0.126 in |
| Temperature Coefficient | BX |
| Thickness (Max) | 0.059 in |
| Tolerance | 10 % |
| Voltage - Rated | 100 VAC/DC |
