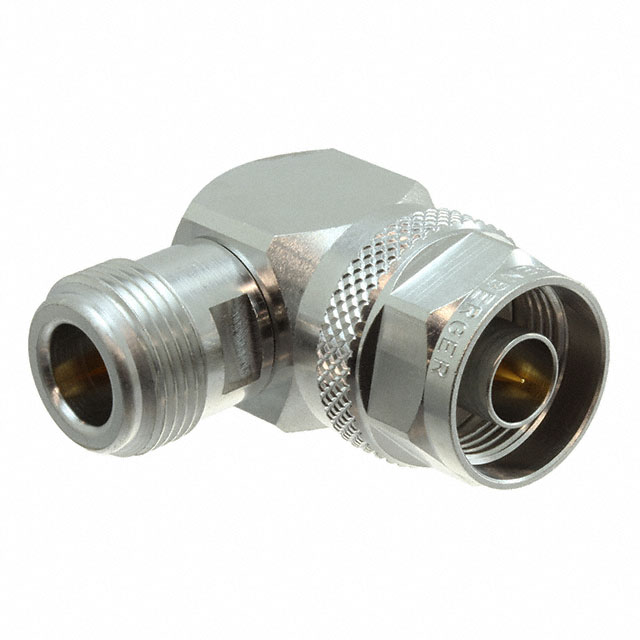

53S201-K00N5

Active

Rosenberger

CONN ADAPT PLUG TO JACK N 50 OHM

Search across all available documentation for this part.

Active

Rosenberger

CONN ADAPT PLUG TO JACK N 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	53S201-K00N5

Adapter Series	N to N
Adapter Type	Plug to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	N Plug, Male Pin
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Right Angle

Part	Convert From (Adapter End)	Center Contact Plating	Mounting Type	Mating Cycles	Style	Body Material	Convert To (Adapter End)	Body Finish	Conversion Type	Center Contact Material	Frequency - Max [Max]	Adapter Type	Operating Temperature [Max]	Operating Temperature [Min]	Adapter Series	Dielectric Material	Impedance
Rosenberger 53S201-K00N5	N Plug Male Pin	Gold	Free Hanging (In-Line) Right Angle	500	Right Angle	Brass	Female Socket N Jack	White Bronze	Same Series	Beryllium Copper Brass	11 GHz	Plug to Jack	155 °C	-55 °C	N to N	Polytetrafluoroethylene (PTFE)	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Plug, Male Pin To N Jack, Female Socket 50 Ohms
