MD-70SN

Active

CUI Devices

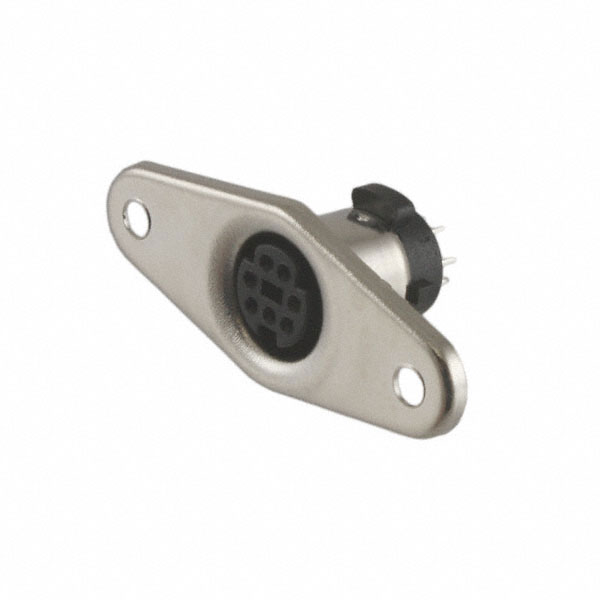

CONN RCPT FMALE MINI DIN 7P SLDR

Search across all available documentation for this part.

Active

CUI Devices

CONN RCPT FMALE MINI DIN 7P SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	MD-70SN

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Phosphor Bronze
Fastening Type	Push-Pull
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	7
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Iron
Shell Size - Insert	Mini DIN
Shielding	Shielded
Termination	Solder
Voltage Rating	100 VAC, 12 V

Part	Voltage Rating	Contact Finish - Mating	Material Flammability Rating	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Fastening Type	Mounting Type	Shell Material	Termination	Shell Size - Insert	Connector Type	Contact Material	Shielding	Color	Features	Orientation	Mounting Feature	Shell Finish	Insert Material
CUI Devices MD-70S	12 V 100 VAC	Silver	UL94 V-0	7	85 °C	-40 °C	Plastic	Push-Pull	Through Hole Right Angle	Polybutylene Terephthalate (PBT)	Solder	Mini DIN	Receptacle Female Sockets	Phosphor Bronze	Unshielded	Black	Board Lock Ground	Keyed
CUI Devices MD-70SN	12 V 100 VAC	Silver	UL94 V-0	7	105 ░C	-20 C	Metal	Push-Pull		Iron	Solder	Mini DIN	Receptacle Female Sockets	Phosphor Bronze	Shielded	Silver		Keyed	Flange	Nickel	Polyamide (PA) Nylon Glass Filled
CUI Devices MD-70J	12 V 100 VAC	Silver	UL94 V-0	7	105 ░C	-20 C	Metal	Push-Pull	Free Hanging (In-Line)	Copper	Crimp Pin Adapter Available Solder	Mini DIN	Receptacle Female Sockets	Brass	Unshielded	Black	Ground Strain Relief	Keyed		Black Nickel	Polyamide (PA6) Nylon 6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1000	$ 1.74

General part information

7 Position Circular Connector Receptacle, Female Sockets Solder
