155206-6202-RB

Active

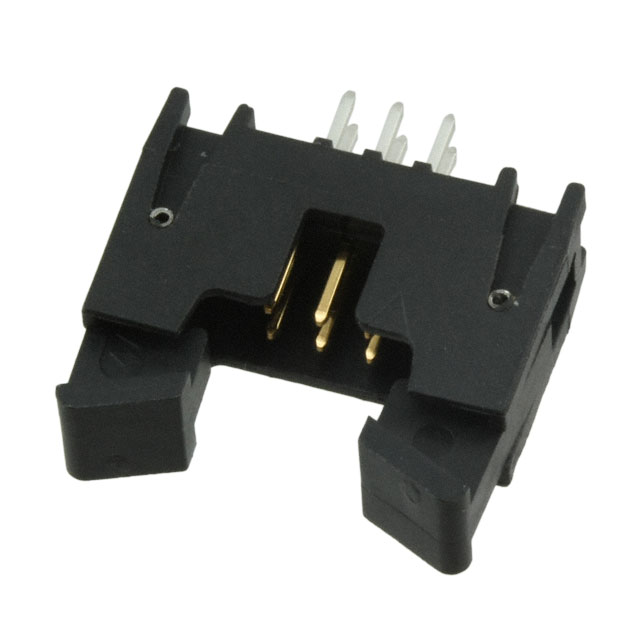

CONN HEADER VERT 6POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet +1

155206-6202-RB

Active

CONN HEADER VERT 6POS 2MM

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1071	$ 2.80

Description

General part information

155206 Series

Connector Header Through Hole 6 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet

Interconnect Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	155206-6202-RB	155206 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	0.15 in	0.15 in
Contact Length - Mating	3.81 mm	3.81 mm
Contact Length - Post	2.84 mm	2.84 mm
Contact Length - Post	0.112 in	0.112 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.25 A	1.25 A
Fastening Type	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks
Features	Keying Slot	Keying Slot
Insulation Color	Black	Black
Insulation Height	0.425 in	0.247 - 0.425 in
Insulation Height	10.8 mm	6.28 - 10.8 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle
Number of Positions	6	6
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

155206 Series

CONN HEADER VERT 6POS 2MM

Part	Contact Finish - Post	Number of Rows	Number of Positions	Connector Type	Features	Current Rating (Amps)	Contact Finish - Mating	Style	Contact Type	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Insulation Color	Termination	Contact Shape	Shrouding	Contact Material	Insulation Height	Insulation Height	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating
3M 155206-6202-RB	Tin	2	6	Header	Keying Slot	1.25 A	Gold	Board to Cable/Wire	Male Pin	Through Hole	200 µin	5.08 µm	2.84 mm	0.112 in	Black	Solder	Square	Shrouded - 4 Wall	Copper Alloy	0.425 in	10.8 mm	0.079 in	2 mm	30 Áin	0.76 Ám	0.15 in	3.81 mm	All	105 ░C	-55 °C	Latch Lock/Eject Hooks	0.079 in	2 mm	UL94 V-0
