General part information

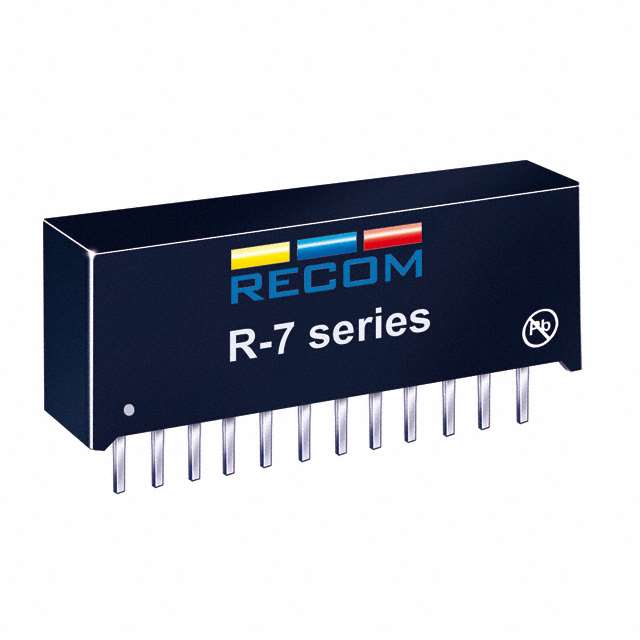

Non-Isolated DC/DC Converters DC/DC REG 4.5-28Vin 2.5-5.5out
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | R-739.0P | R-7xxxP_D Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | Active High, Enable | Active High, Enable |
| Current - Output (Max) [Max] | 3 A | 2 - 4 A |
| Efficiency | 96 % | 93 - 97 % |
| Features | Remote On/Off, SCP | Remote On/Off, SCP, OCP |
| Mounting Type | Through Hole | Through Hole, Right Angle, Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 12-SIP Module | 12-SIP Module |
| Power (Watts) | 27 W | 13 - 45 W |
| Size / Dimension [x] | 32.2 mm | 32.2 mm |
| Size / Dimension [x] | 1.27 in | 1.27 in |
| Size / Dimension [y] | 9.1 mm | 9.1 - 15 mm |
| Size / Dimension [y] | 0.36 " | 0.36 - 0.59 in |
| Size / Dimension [z] | 0.59 in | 0.36 - 0.59 in |
| Size / Dimension [z] | 15 mm | 9.1 - 15 mm |
| Type | Non-Isolated PoL Module | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 28 V | 28 V |
| Voltage - Input (Min) | - | 4.5 - 19 V |
| Voltage - Output 1 | 9 V | 3.3 - 15 V |
Non-Isolated DC/DC Converters DC/DC REG 4.5-28Vin 2.5-5.5out
| Part | Number of Outputs | Control Features | Voltage - Input (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Voltage - Input (Max) [Max] | Efficiency | Current - Output (Max) [Max] | Features | Applications | Type | Package / Case | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Power (Watts) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RECOM Power R-7315D | 1 | Active High, Enable | 19 V | 85 °C | -40 °C | 15 V | 28 V | 97 % | 3 A | Remote On/Off, SCP | ITE (Commercial) | Non-Isolated PoL Module | 12-SIP Module | 9.1 mm | 15 mm | 1.27 in | 0.59 in | 0.36 in | 32.2 mm | 45 W | Through Hole, Right Angle |
RECOM Power R-739.0P | 1 | Active High, Enable | 85 °C | -40 °C | 9 V | 28 V | 96 % | 3 A | Remote On/Off, SCP | ITE (Commercial) | Non-Isolated PoL Module | 12-SIP Module | 15 mm | 9.1 mm | 1.27 in | 0.36 " | 0.59 in | 32.2 mm | 27 W | Through Hole | |
RECOM Power R-7315P | 1 | Active High, Enable | 19 V | 85 °C | -40 °C | 15 V | 28 V | 97 % | 3 A | Remote On/Off, SCP | ITE (Commercial) | Non-Isolated PoL Module | 12-SIP Module | 15 mm | 9.1 mm | 1.27 in | 0.36 " | 0.59 in | 32.2 mm | 45 W | Through Hole |
RECOM Power R-726.5P | 1 | Active High, Enable | 8.5 V | 85 °C | -40 °C | 6.5 V | 28 V | 97 % | 2 A | Remote On/Off, SCP | ITE (Commercial) | Non-Isolated PoL Module | 12-SIP Module | 15 mm | 9.1 mm | 1.27 in | 0.36 " | 0.59 in | 32.2 mm | 13 W | Through Hole |
RECOM Power R-743.3P | 1 | Active High, Enable | 4.5 V | 85 °C | -40 °C | 3.3 V | 28 V | 93 % | 4 A | OCP, Remote On/Off, SCP | ITE (Commercial) | Non-Isolated PoL Module | 12-SIP Module | 15 mm | 9.1 mm | 1.27 in | 0.36 " | 0.59 in | 32.2 mm | 13 W | Through Hole |
RECOM Power R-7215D | 1 | Active High, Enable | 19 V | 85 °C | -40 °C | 15 V | 28 V | 97 % | 2 A | Remote On/Off, SCP | ITE (Commercial) | Non-Isolated PoL Module | 12-SIP Module | 9.1 mm | 15 mm | 1.27 in | 0.59 in | 0.36 in | 32.2 mm | 30 W | Through Hole, Right Angle |
RECOM Power R-739.0D | 1 | Active High, Enable | 85 °C | -40 °C | 9 V | 28 V | 96 % | 3 A | Remote On/Off, SCP | ITE (Commercial) | Non-Isolated PoL Module | 12-SIP Module | 9.1 mm | 15 mm | 1.27 in | 0.59 in | 0.36 in | 32.2 mm | 27 W | Through Hole, Right Angle |
