74AC541MTR
ActiveSTMicroelectronics

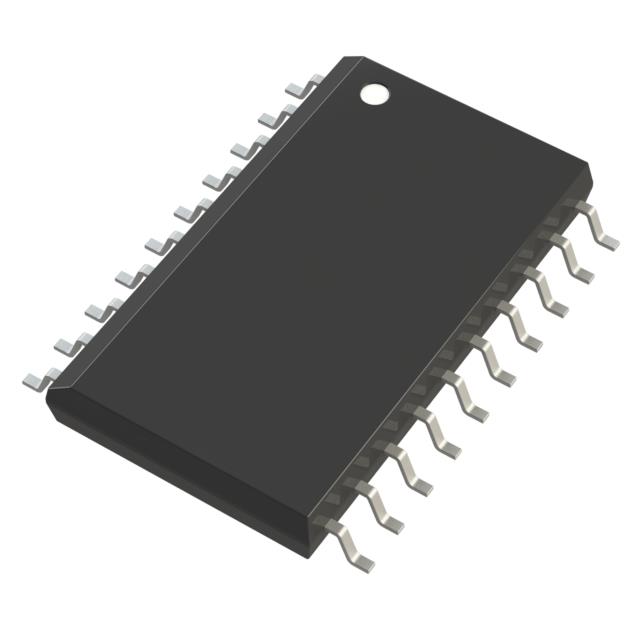

IC BUFF NON-INVERT 6V 20SOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
74AC541MTR
ActiveSTMicroelectronics
IC BUFF NON-INVERT 6V 20SOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 74AC541MTR | 74AC541 Series |
|---|---|---|
| Current - Output High, Low | 24 mA | 24 mA |
| Logic Type | Buffer, Non-Inverting | Buffer, Non-Inverting |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Bits per Element | 8 | 8 |
| Number of Elements | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Output Type | 3-State | 3-State |
| Package / Case | 20-SOIC | 20-SOIC, 20-TSSOP |
| Package / Case | - | 0.173 in |
| Package / Case [y] | 0.295 in | 0.295 - 4.4 in |
| Package / Case [y] | 7.5 mm | 7.5 mm |
| Supplier Device Package | 20-SO | 20-SO, 20-TSSOP |
| Voltage - Supply [Max] | 6 V | 6 V |
| Voltage - Supply [Min] | 2 V | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
74AC541 Series
IC BUFF NON-INVERT 6V 20SOP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output High, Low | Package / Case | Package / Case [y] | Package / Case [y] | Supplier Device Package | Voltage - Supply [Min] | Voltage - Supply [Max] | Logic Type | Mounting Type | Output Type | Number of Elements | Number of Bits per Element | Package / Case [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics 74AC541MTR | 125 °C | -55 °C | 24 mA | 20-SOIC | 0.295 in | 7.5 mm | 20-SO | 2 V | 6 V | Buffer, Non-Inverting | Surface Mount | 3-State | 1 | 8 | |
STMicroelectronics 74AC541TTR | 125 °C | -55 °C | 24 mA | 20-TSSOP | 4.4 mm | 20-TSSOP | 2 V | 6 V | Buffer, Non-Inverting | Surface Mount | 3-State | 1 | 8 | 0.173 in |
Description
General part information
74AC541 Series
Buffer, Non-Inverting 1 Element 8 Bit per Element 3-State Output 20-SO
