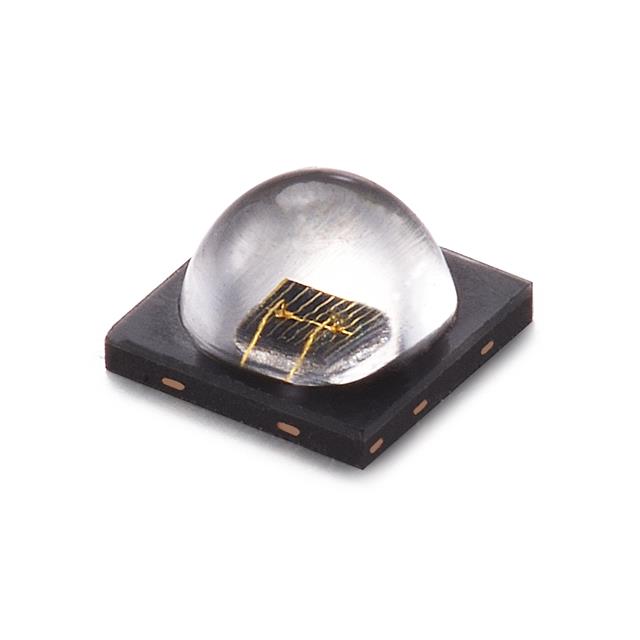

SE03-EMC3838A-C60-3

Active

XSSY Optoelectronics Co.,Ltd.

50MA MINIMUM RADIATION INTENSITY

Search across all available documentation for this part.

Active

XSSY Optoelectronics Co.,Ltd.

50MA MINIMUM RADIATION INTENSITY

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SE03-EMC3838A-C60-3	SE03-EMC3838A Series

Current - DC Forward (If) (Max)	1 A	1 A
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Orientation	Top View	Top View
Package / Case	3-SMD, No Lead	3-SMD, No Lead
Radiant Intensity (Ie) Min @ If [Min]	500 mW/sr	500 - 550 mW/sr
Type	Infrared (IR)	Infrared (IR)
Viewing Angle	60 °	30 - 120 °
Voltage - Forward (Vf) (Typ) [Max]	1.8 V	1.8 V
Voltage - Forward (Vf) (Typ) [Min]	1.5 V	1.5 V
Wavelength	850 nm	850 nm

50MA MINIMUM RADIATION INTENSITY

Part	Voltage - Forward (Vf) (Typ) [Min]	Voltage - Forward (Vf) (Typ) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Mounting Type	Radiant Intensity (Ie) Min @ If [Min]	Package / Case	Current - DC Forward (If) (Max)	Viewing Angle	Wavelength	Type
XSSY Optoelectronics Co.,Ltd. SE03-EMC3838A-C60-3	1.5 V	1.8 V	-30 ░C	85 °C	Top View	Surface Mount	500 mW/sr	3-SMD, No Lead	1 A	60 °	850 nm	Infrared (IR)
XSSY Optoelectronics Co.,Ltd. SE03-EMC3838A-A00-3	1.5 V	1.8 V	-30 ░C	85 °C	Top View	Surface Mount		3-SMD, No Lead	1 A	120 °	850 nm	Infrared (IR)
XSSY Optoelectronics Co.,Ltd. SE03-EMC3838A-A30-3	1.5 V	1.8 V	-30 ░C	85 °C	Top View	Surface Mount	550 mW/sr	3-SMD, No Lead	1 A	30 °	850 nm	Infrared (IR)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 850nm 1.5V ~ 1.8V 1A 500mW/sr @ 1A 60° 3-SMD, No Lead
