Technical Specifications
Parameters and characteristics for this part
| Specification | EVSPIN32G06Q1S1 |
|---|---|
| Embedded | MCU, 32-Bit |
| Embedded | True |
| Function | Motor Controller/Driver |
| Primary Attributes | Motors (PMSM) |
| Secondary Attributes | On-Board LEDs, Test Points |
| Supplied Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | STSPIN32G0601 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EVSPIN32G06Q1S1 Series

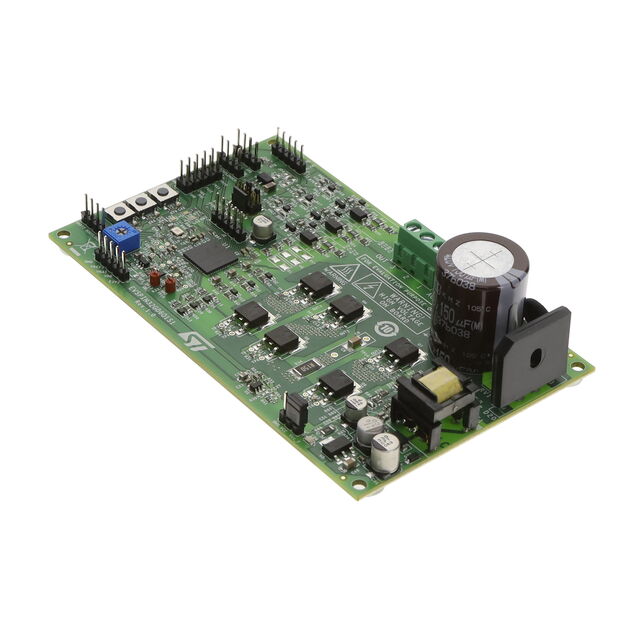

The EVSPIN32G06Q1S1 board is a 3-phase complete inverter based on the STSPIN32G0601 controller, which embeds a 3‑phase 600 V gate driver and a Cortex®-M0+ STM32 MCU. The power stage features STGD6M65DF2 IGBTs, but can be populated with any IGBT or Power MOSFET in DPAK or powerFLAT 8x8 HV package. The board has a single-shunt sensing topology, and both FOC and 6‑step control algorithms in either sensored or sensorless mode can be implemented. This allows driving permanent magnet synchronous motors (PMSMs) and brushless DC (BLDC) motors.
The evaluation board is compatible with a wide range input voltage from 35 VAC (50 VDC) to 280 VAC (400 VDC), and includes a power supply stage with the VIPER06XS in flyback configuration to generate +15 V and +3.3 V supply voltage required by the application.
Debug and configuration of firmware can be performed with standard STM32 tools through the STLINK debugger. SWD and UART TX‑RX connectors are also available.
