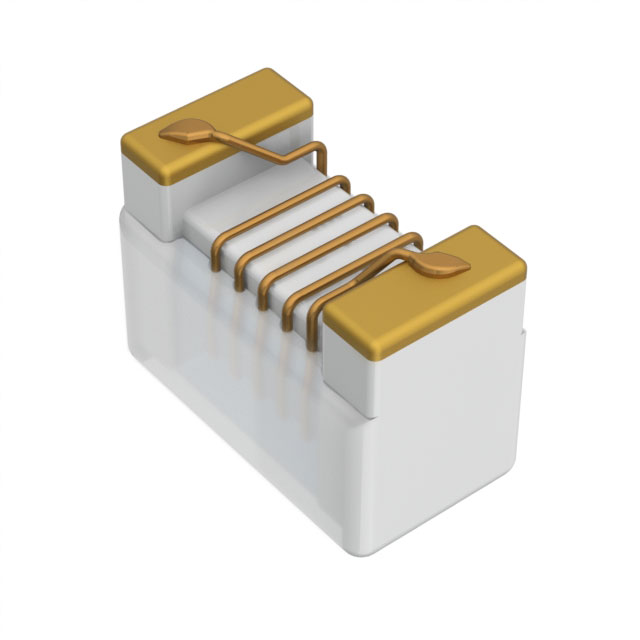

Specification	CW105550A-2N2D

Current Rating	960 mA
DC Resistance (DCR) (Max)	70 mOhm
Frequency - Self Resonant	6 GHz
Height - Seated (Max)	0.024 in
Inductance	2.2 nH
Inductance Frequency - Test	250 MHz
Material - Core	Ceramic
Mounting Type	Surface Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package / Case	0402 (1005 Metric)
Package Name	0402
Q	18
Ratings	AEC-Q200
Shielding	Unshielded
Size / Dimension Length	0.039 in
Size / Dimension Width	0.022 in
Tolerance	0.3 nH
Type	Wirewound

CW105550A Series

Part	Q	Inductance	Package / Case	Inductance Frequency - Test	Size / Dimension Length	Size / Dimension Width	Mounting Type	Package Name	Frequency - Self Resonant	Tolerance	Ratings	DC Resistance (DCR) (Max)	Height - Seated (Max)	Shielding	Operating Temperature (Max)	Operating Temperature (Min)	Type	Material - Core	Current Rating
Bourns Inc. CW105550A-2N7D	16	2.7 nH	0402 (1005 Metric)	250 MHz	0.039 in	0.022 in	Surface Mount	0402	6 GHz	0.3 nH	AEC-Q200	120 mOhm	0.024 in	Unshielded	125 °C	-40 °C	Wirewound	Ceramic	0.86 A
Bourns Inc. CW105550A-5N1J	23	5.1 nH	0402 (1005 Metric)	250 MHz	0.039 in	0.022 in	Surface Mount	0402	5.8 GHz	5 %	AEC-Q200	83 mOhm	0.024 in	Unshielded	125 °C	-40 °C	Wirewound	Ceramic	800 mA
Bourns Inc. CW105550A-R12J	20	120 nH	0402 (1005 Metric)	150 MHz	0.039 in	0.022 in	Surface Mount	0402	1.1 GHz	5 %	AEC-Q200	2.66 Ohm	0.024 in	Unshielded	125 °C	-40 °C	Wirewound	Ceramic	110 mA
Bourns Inc. CW105550A-91NJ	20	91 nH	0402 (1005 Metric)	150 MHz	0.039 in	0.022 in	Surface Mount	0402	1.35 GHz	5 %	AEC-Q200	2.3 Ohm	0.024 in	Unshielded	125 °C	-40 °C	Wirewound	Ceramic	120 mA
Bourns Inc. CW105550A-12NJ	26	12 nH	0402 (1005 Metric)	250 MHz	0.039 in	0.022 in	Surface Mount	0402	3.6 GHz	5 %	AEC-Q200	120 mOhm	0.024 in	Unshielded	125 °C	-40 °C	Wirewound	Ceramic	0.64 A
Bourns Inc. CW105550A-2N2D	18	2.2 nH	0402 (1005 Metric)	250 MHz	0.039 in	0.022 in	Surface Mount	0402	6 GHz	0.3 nH	AEC-Q200	70 mOhm	0.024 in	Unshielded	125 °C	-40 °C	Wirewound	Ceramic	960 mA
Bourns Inc. CW105550A-4N7J	15	4.7 nH	0402 (1005 Metric)	250 MHz	0.039 in	0.022 in	Surface Mount	0402	4.775 GHz	5 %	AEC-Q200	130 mOhm	0.024 in	Unshielded	125 °C	-40 °C	Wirewound	Ceramic	0.64 A
Bourns Inc. CW105550A-2N0D	16	2 nH	0402 (1005 Metric)	250 MHz	0.039 in	0.022 in	Surface Mount	0402	6 GHz	0.3 nH	AEC-Q200	70 mOhm	0.024 in	Unshielded	125 °C	-40 °C	Wirewound	Ceramic	1.04 A
Bourns Inc. CW105550A-30NJ	25	30 nH	0402 (1005 Metric)	250 MHz	0.039 in	0.022 in	Surface Mount	0402	2.35 GHz	5 %	AEC-Q200	300 mOhm	0.024 in	Unshielded	125 °C	-40 °C	Wirewound	Ceramic	400 mA
Bourns Inc. CW105550A-5N6J	23	5.6 nH	0402 (1005 Metric)	250 MHz	0.039 in	0.022 in	Surface Mount	0402	5.8 GHz	5 %	AEC-Q200	83 mOhm	0.024 in	Unshielded	125 °C	-40 °C	Wirewound	Ceramic	760 mA
