MS3121F10-6P

Active

ITT Cannon, LLC

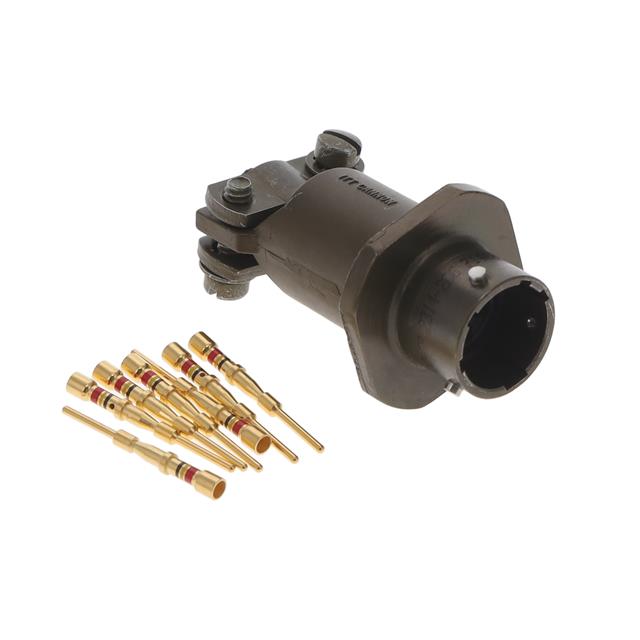

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3121 SERIES, CABLE MOUNT RECEPTACLE, 6 CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

MS3121F10-6P

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3121 SERIES, CABLE MOUNT RECEPTACLE, 6 CONTACTS

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3121F10-6P

Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Features	Strain Relief
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	10-6
Termination	Crimp
Voltage Rating	600 VAC, 850 V

MS3121F10 Series

Part	Number of Positions	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation	Contact Finish - Mating	Primary Material	Shell Finish	Connector Type	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Color	Mounting Type	Voltage Rating	Termination	Features	Current Rating (Amps)	Fastening Type
ITT Cannon, LLC MS3121F10-6P	6	Environment Resistant	1.27 µm	50 µin	N	Gold	Metal	Olive Drab Cadmium	Male Pins Receptacle	Aluminum Alloy	-55 °C	125 °C	10-6	Olive Drab	Free Hanging (In-Line)	600 VAC 850 V	Crimp	Strain Relief	7.5 A	Bayonet Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 59.91
		10	$ 54.97
		25	$ 52.86
		50	$ 51.10
		100	$ 48.28
Newark	Each	1	$ 65.10
		5	$ 60.23
		10	$ 55.34
		25	$ 51.88
		50	$ 49.40
		100	$ 47.05

Description

General part information

MS3121F10 Series

The MS3121F10-6P from ITT Cannon is MIL-DTL-26482 series I cable mount receptacle with 6 contacts. MIL-DTL-26482 series I connectors are available in various shell styles and shell plating with 48hr, 500hr salt spray exposure. The unmated connectors and protective covers meet 48hrs exposure to MIL-STD-1344 method 1001 per MIL-DTL-26482. It has a well-proven electrical capability and is designed to withstand extreme shock, exposure and vibration.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
