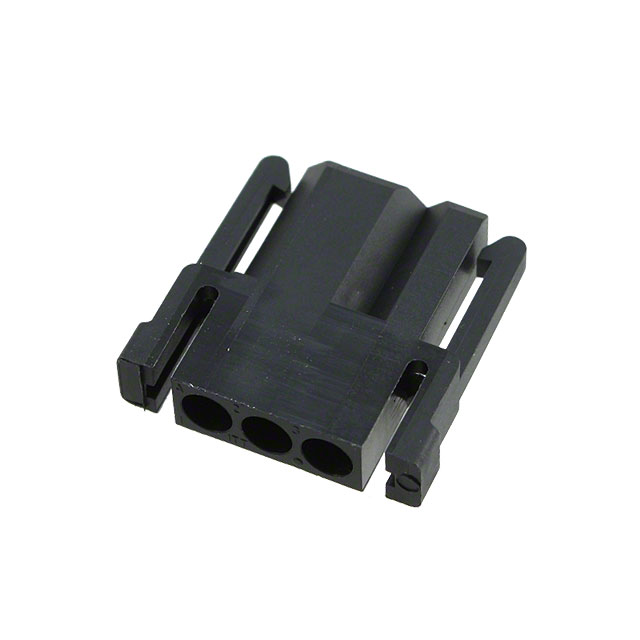

Specification	TST03PF00

Color	Black
Connector Type	Plug
Contact Termination	Crimp and Solder, Crimp, Solder
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	3
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch	5.08 mm

TST03 Series

Part	Number of Rows	Termination	Connector Type	Contact Type	Number of Positions	Contact Length - Post	Features	Insulation Color	Contact Finish - Mating	Insulation Height	Voltage Rating	Shrouding	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Current Rating	Fastening Type	Insulation Material	Style	Number of Positions Loaded	Contact Shape	Pitch - Mating	Mounting Type	Applications	For Use With/Related Products	Accessory Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch	Color	Contact Termination	Note
ITT Cannon, LLC TST03RB05T	1	Solder	Receptacle	Male Pin	3	0.224 in	Mounting Flange	Black	Tin	0.531 in	250 V	Unshrouded	-40 °C	105 °C	UL94 V-0	13 A	Latch Holder	Nylon Polyamide (PA)	Board Cable/Wire	All	Circular	0.2 in	Through Hole	Automotive Industrial
ITT Cannon, LLC TST03RB01T	1	Solder	Receptacle	Male Pin	3	0.224 in	Mounting Flange	Black	Tin	0.531 in	250 V	Unshrouded	-40 °C	105 °C	UL94 V-0	13 A	Latch Holder	Nylon Polyamide (PA)	Board Cable/Wire	All	Circular	0.2 in	Through Hole	Automotive Industrial
ITT Cannon, LLC TST03AH00					3																				Trident Rectangular Plugs	Hood and Strain Relief
ITT Cannon, LLC TST03RE01T	1	Solder	Receptacle	Male Pin	3	0.157 in	Mounting Flange	Black	Tin	0.386 in	250 V	Shrouded - 4 Wall	-40 °C	105 °C	UL94 V-0	10 A	Latch Holder	Nylon Polyamide (PA)	Board Cable/Wire	All	Circular	0.2 in	Right Angle Through Hole
ITT Cannon, LLC TST03RB06Y	1	Solder	Receptacle	Female Socket	3	0.224 in	Mounting Flange	Black	Gold	0.531 in			-40 °C	105 °C	UL94 V-0		Latch Holder	Nylon Polyamide (PA)	Board Board or Cable	All	Circular	0.2 in	Through Hole	Automotive General Purpose			30 µin
ITT Cannon, LLC TST03RD01Y	1	Solder	Receptacle	Male Pin	3	0.185 in	Mounting Flange	Black	Gold	0.911 in	240 V	Shrouded - 4 Wall	-40 °C	105 °C	UL94 V-0	10 A	Latch Holder	Nylon Polyamide (PA)	Board Cable/Wire	All	Circular	0.2 in	Through Hole				16 µin
ITT Cannon, LLC TST03RB01Z	1	Solder	Receptacle	Male Pin	3	0.224 in	Mounting Flange	Black	Gold	0.531 in	250 V	Unshrouded	-40 °C	105 °C	UL94 V-0	13 A	Latch Holder	Nylon Polyamide (PA)	Board Cable/Wire	All	Circular	0.2 in	Through Hole	Automotive Industrial				Flash
ITT Cannon, LLC TST03PA00	1		Plug	Female Male Male or Female	3								-55 °C	105 °C			Latch Lock	Nylon Polyamide (PA)					Free Hanging (In-Line)						5.08 mm	Black	Crimp Crimp and Solder Solder	Contacts Not Included
ITT Cannon, LLC TST03PF00	1		Plug	Female Socket	3								-55 °C	105 °C			Latch Lock	Nylon Polyamide (PA)					Free Hanging (In-Line)						5.08 mm	Black	Crimp Crimp and Solder Solder	Contacts Not Included
ITT Cannon, LLC TST03RB02T	1	Solder	Receptacle	Female Socket	3	0.224 in	Mounting Flange	Black	Tin	0.531 in			-40 °C	105 °C	UL94 V-0		Latch Holder	Nylon Polyamide (PA)	Board Board or Cable	All	Circular	0.2 in	Through Hole	Automotive General Purpose
