CLT-121-02-F-D-BE

Active

Samtec Inc.

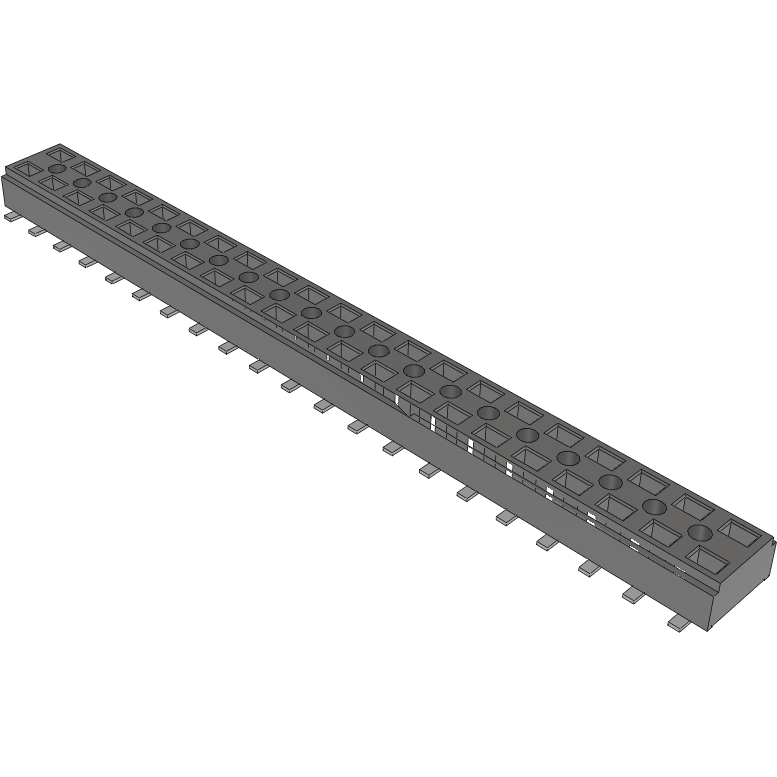

CONN SOCKET STRIP SKT 42 POS 2MM SOLDER ST BOTTOM ENTRY SMD TIGER CLAW™ TUBE

CLT-121-02-F-D-BE

Active

Samtec Inc.

CONN SOCKET STRIP SKT 42 POS 2MM SOLDER ST BOTTOM ENTRY SMD TIGER CLAW™ TUBE

Description Specifications Series Pricing CAD Documents

Description

General part information

CLT-121 Series

42 Position Receptacle, Bottom Entry Connector 0.079" (2.00mm) Surface Mount Gold

Technical Specifications

Parameters and characteristics for this part

Specification	CLT-121-02-F-D-BE

Connector Type	Bottom Entry, Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Per Contact)	4.1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.083 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	42
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.079 in
Row Spacing - Mating	0.079 in
Style	Board
Termination	Solder

CLT-121 Series

Part	Row Spacing - Mating	Current Rating (Per Contact)	Operating Temperature (Max)	Operating Temperature (Min)	Contact Type	Connector Type	Number of Rows	Number of Positions	Contact Finish - Post	Contact Finish Thickness - Mating	Number of Positions Loaded	Mounting Type	Insulation Color	Insulation Height	Contact Finish - Mating	Pitch - Mating	Termination	Features	Fastening Type	Style	Material Flammability Rating	Contact Finish Thickness - Post	Contact Shape	Contact Material	Insulation Material	Contact Length - Post
Samtec Inc. CLT-121-02-G-D-BE-P	0.079 in	4.1 A	125 °C	-55 °C	Female Socket	Bottom Entry Receptacle	2	42	Gold	10 µin	All	Surface Mount	Black	0.083 in	Gold	0.079 in	Solder	Pick and Place	Push-Pull	Board	UL94 V-0	3 µin	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)
Samtec Inc. CLT-121-02-F-D-BE	0.079 in	4.1 A	125 °C	-55 °C	Female Socket	Bottom Entry Receptacle	2	42	Tin	3 µin	All	Surface Mount	Black	0.083 in	Gold	0.079 in	Solder		Push-Pull	Board	UL94 V-0		Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)
Samtec Inc. CLT-121-01-L-D	0.079 in	4.1 A	125 °C	-55 °C	Female Socket	Receptacle	2	42	Tin	10 µin	All	Through Hole	Black	0.083 in	Gold	0.079 in	Solder		Push-Pull	Board	UL94 V-0		Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.085 in
Samtec Inc. CLT-121-02-H-D-BE-A-P	0.079 in	4.1 A	125 °C	-55 °C	Female Socket	Bottom Entry Receptacle	2	42	Gold	30 µin	All	Surface Mount	Black	0.083 in	Gold	0.079 in	Solder	Board Guide Pick and Place	Push-Pull	Board	UL94 V-0	3 µin	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)
Samtec Inc. CLT-121-02-F-D	0.079 in	4.1 A	125 °C	-55 °C	Female Socket	Receptacle	2	42	Tin	3 µin	All	Surface Mount	Black	0.083 in	Gold	0.079 in	Solder		Push-Pull	Board	UL94 V-0		Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)
Samtec Inc. CLT-121-02-L-D-A	0.079 in	4.1 A	125 °C	-55 °C	Female Socket	Receptacle	2	42	Tin	10 µin	All	Surface Mount	Black	0.083 in	Gold	0.079 in	Solder	Board Guide	Push-Pull	Board	UL94 V-0		Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)
Samtec Inc. CLT-121-02-L-D-BE	0.079 in	4.1 A	125 °C	-55 °C	Female Socket	Bottom Entry Receptacle	2	42	Tin	10 µin	All	Surface Mount	Black	0.083 in	Gold	0.079 in	Solder		Push-Pull	Board	UL94 V-0		Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)
Samtec Inc. CLT-121-02-G-D-BE	0.079 in	4.1 A	125 °C	-55 °C	Female Socket	Bottom Entry Receptacle	2	42	Gold	10 µin	All	Surface Mount	Black	0.083 in	Gold	0.079 in	Solder		Push-Pull	Board	UL94 V-0	3 µin	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)
Samtec Inc. CLT-121-02-F-D-BE-A	0.079 in	4.1 A	125 °C	-55 °C	Female Socket	Bottom Entry Receptacle	2	42	Tin	3 µin	All	Surface Mount	Black	0.083 in	Gold	0.079 in	Solder	Board Guide	Push-Pull	Board	UL94 V-0		Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)
Samtec Inc. CLT-121-02-L-D-A-P-TR	0.079 in	4.1 A	125 °C	-55 °C	Female Socket	Receptacle	2	42	Tin	10 µin	All	Surface Mount	Black	0.083 in	Gold	0.079 in	Solder	Board Guide Pick and Place	Push-Pull	Board	UL94 V-0		Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)
