FN258P-7-29

Obsolete

TE Connectivity Raychem Cable Protection

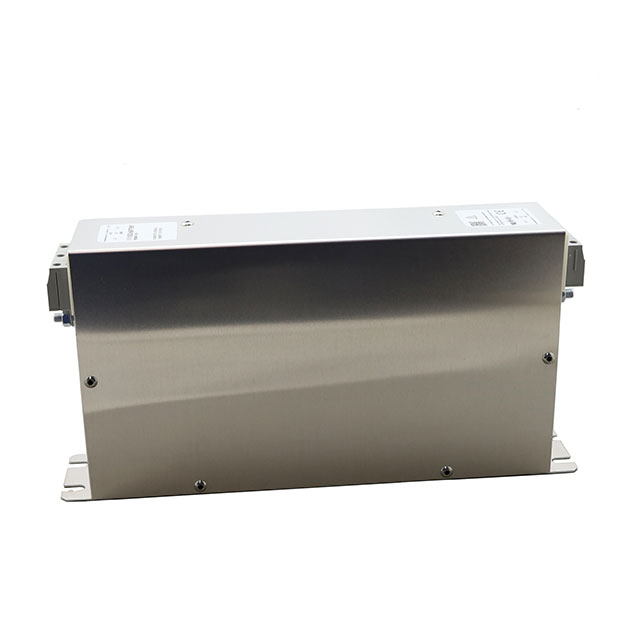

LINE FILTER 7A CHASSIS MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FN258P-7-29

Obsolete

TE Connectivity Raychem Cable Protection

LINE FILTER 7A CHASSIS MOUNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN258P-7-29

Applications	Power Drive Systems, Inverters
Approval Agency	CSA, ENEC, UR
Configuration	Two Stage
Current	7 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	DC
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Terminal Block
Voltage - Rated AC (Phase to Phase)	480 V

FN258P Series

Part	Configuration	Approval Agency	Termination Style	Voltage - Rated AC (Phase to Phase)	Current	Frequency - Operating [Max]	Frequency - Operating [Min]	Applications	Operating Temperature [custom]	Mounting Type	Filter Type
TE Connectivity Raychem Cable Protection FN258P-250-07	Two Stage	CSA ENEC UR	Terminal Block	480 V	250 A	60 Hz	DC	Inverters Power Drive Systems	-25 °C 100 °C	Chassis Mount	Three Phase (Delta)
TE Connectivity Raychem Cable Protection FN258P-16-29	Two Stage	CSA ENEC UR	Terminal Block	480 V	16 A	60 Hz	DC	Inverters Power Drive Systems	-25 °C 100 °C	Chassis Mount	Three Phase (Delta)
TE Connectivity Raychem Cable Protection FN258P-30-07	Two Stage	CSA ENEC UR	Terminal Block	480 V	30 A	60 Hz	DC	Inverters Power Drive Systems	-25 °C 100 °C	Chassis Mount	Three Phase (Delta)
TE Connectivity Raychem Cable Protection FN258P-7-07	Two Stage	CSA ENEC UR	Terminal Block	480 V	7 A	60 Hz	DC	Inverters Power Drive Systems	-25 °C 100 °C	Chassis Mount	Three Phase (Delta)
TE Connectivity Raychem Cable Protection FN258P-7-29	Two Stage	CSA ENEC UR	Terminal Block	480 V	7 A	60 Hz	DC	Inverters Power Drive Systems	-25 °C 100 °C	Chassis Mount	Three Phase (Delta)
TE Connectivity Raychem Cable Protection FN258P-180-07	Two Stage	CSA ENEC UR	Terminal Block	480 V	180 A	60 Hz	DC	Inverters Power Drive Systems	-25 °C 100 °C	Chassis Mount	Three Phase (Delta)
TE Connectivity Raychem Cable Protection FN258P-42-07	Two Stage	CSA ENEC UR	Terminal Block	480 V	42 A	60 Hz	DC	Inverters Power Drive Systems	-25 °C 100 °C	Chassis Mount	Three Phase (Delta)
TE Connectivity Raychem Cable Protection FN258P-30-33	Two Stage	CSA ENEC UR	Terminal Block	480 V	30 A	60 Hz	DC	Inverters Power Drive Systems	-25 °C 100 °C	Chassis Mount	Three Phase (Delta)
TE Connectivity Raychem Cable Protection FN258P-42-33	Two Stage	CSA ENEC UR	Terminal Block	480 V	42 A	60 Hz	DC	Inverters Power Drive Systems	-25 °C 100 °C	Chassis Mount	Three Phase (Delta)
TE Connectivity Raychem Cable Protection FN258P-55-34	Two Stage	CSA ENEC UR	Terminal Block	480 V	55 A	60 Hz	DC	Inverters Power Drive Systems	-25 °C 100 °C	Chassis Mount	Three Phase (Delta)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

FN258P Series

Three Phase (Delta) EMC/EMI Line Filter 7 A DC ~ 60Hz Two Stage Terminal Block
