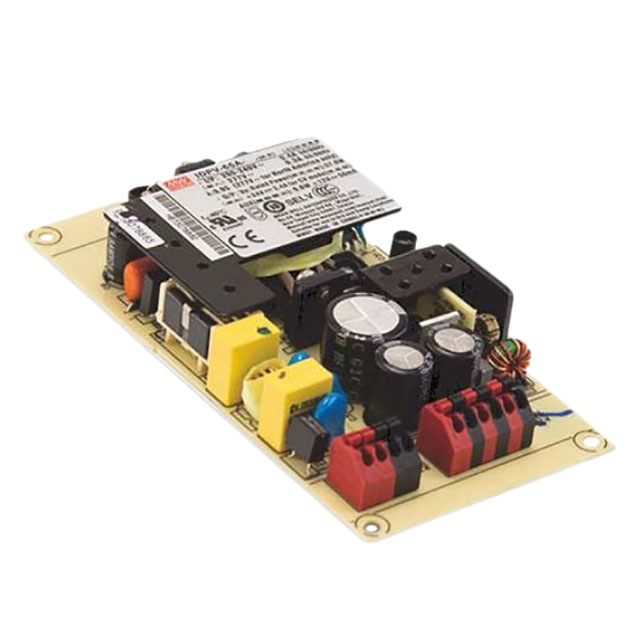

IDPV-65-24

Obsolete

MEAN WELL USA Inc.

O/P 24V2.4A

Search across all available documentation for this part.

Obsolete

MEAN WELL USA Inc.

O/P 24V2.4A

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input (Min) [Min]	Approval Agency	Voltage - Input (Max) [Max]	Topology	Efficiency	Features	Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Voltage - Output	Power (Watts)	Mounting Type	Dimming	Number of Outputs	Termination Style	Voltage - Isolation
MEAN WELL USA Inc. IDPV-65A-12	180 VAC	CB CCC CE cURus ENEC	295 VAC	AC DC Converter	85 %	OCP SCP	Constant Voltage	5.12 "	130 mm	67.5 mm	0.87 in	22 mm	2.66 "	-20 C	40 °C	4.2 A	12 V	50 W	Chassis Mount	Analog PWM	1	Terminal Block	3750 V
MEAN WELL USA Inc. IDPV-65-24	180 VAC	CB CCC CE cURus ENEC	295 VAC	AC DC Converter	87 %	OCP SCP	Constant Voltage	5.12 "	130 mm	67.5 mm	0.87 in	22 mm	2.66 "	-20 C	40 °C	2.4 A	24 V		Chassis Mount	Analog PWM	1	Terminal Block	3750 V
MEAN WELL USA Inc. IDPV-65-36
MEAN WELL USA Inc. IDPV-65A-24	180 VAC	CB CCC CE cURus ENEC	295 VAC	AC DC Converter	87 %	OCP SCP	Constant Voltage	5.12 "	130 mm	67.5 mm	0.87 in	22 mm	2.66 "	-20 C	40 °C	2.4 A	24 V		Chassis Mount	Analog PWM	1	Terminal Block	3750 V
MEAN WELL USA Inc. IDPV-65A-48
MEAN WELL USA Inc. IDPV-65-48

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 20.37

General part information

2.4A 24V Constant Voltage LED Driver AC DC Converter Topology 1 Output
