794626-4

Obsolete

TE Connectivity AMP Connectors

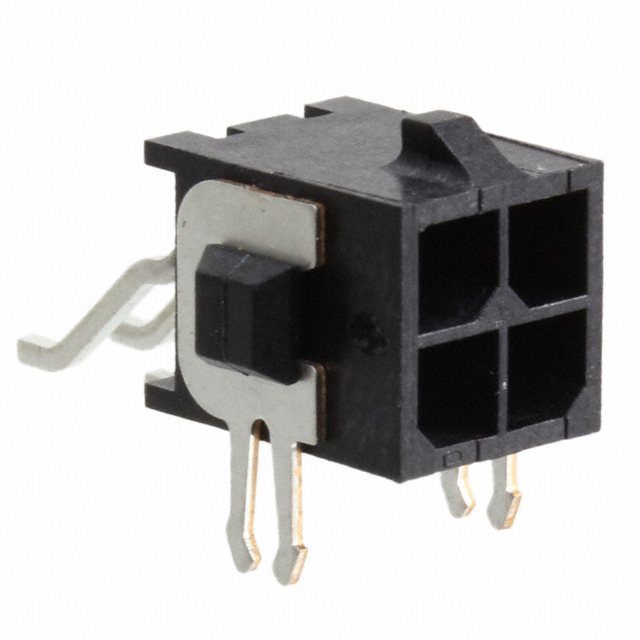

CONN HEADER SMD R/A 4POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

794626-4

Obsolete

TE Connectivity AMP Connectors

CONN HEADER SMD R/A 4POS 3MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

794626 Series

Connector Header Surface Mount, Right Angle 4 position 0.118" (3.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	794626-4	794626 Series

Applications	General Purpose	General Purpose, Industrial, Lighting
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	100 µin	100 µin
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Current Rating (Amps)	-	5 A
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	Black	Black
Insulation Height	7.37 mm	7.37 mm
Insulation Height	0.29 in	0.29 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Number of Positions	4	2 - 24
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.118 in	0.118 in
Pitch - Mating	3 mm	3 mm
Row Spacing - Mating	3 mm	3 mm
Row Spacing - Mating	0.118 in	0.118 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VDC	250 VDC

794626 Series

CONN HEADER SMD R/A 16POS 3MM

Part	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Shrouding	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Voltage Rating	Fastening Type	Contact Finish - Mating	Insulation Material	Contact Shape	Material Flammability Rating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Applications	Style	Connector Type	Contact Type	Insulation Color	Contact Finish - Post	Number of Positions	Number of Positions Loaded	Termination	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Number of Positions	Current Rating (Amps)
TE Connectivity AMP Connectors 4-794626-6	3 mm	0.118 in	0.118 in	3 mm	Shrouded - 4 Wall	7.37 mm	0.29 in	2.54 µm	100 µin	250 VDC	Locking Ramp	Gold	Nylon, Polyamide (PA)	Square	UL94 V-0	Brass	-40 °C	105 ░C	Surface Mount, Right Angle	General Purpose	Board to Cable/Wire	Header	Male Pin	Black	Tin	16	All	Solder	Varies by Wire Gauge	30 Áin	0.76 Ám	2
TE Connectivity AMP Connectors 4-794626-2	3 mm	0.118 in	0.118 in	3 mm	Shrouded - 4 Wall	7.37 mm	0.29 in	2.54 µm	100 µin	250 VAC	Locking Ramp	Gold	Nylon, Polyamide (PA)	Square	UL94 V-0	Brass	-40 °C	105 ░C	Surface Mount, Right Angle	General Purpose, Industrial, Lighting	Board to Cable/Wire	Header	Male Pin	Black	Tin		All	Solder		30 Áin	0.76 Ám	2	12	5 A
TE Connectivity AMP Connectors 3-794626-8	3 mm	0.118 in	0.118 in	3 mm	Shrouded - 4 Wall	7.37 mm	0.29 in	2.54 µm	100 µin	250 VDC	Locking Ramp	Gold	Nylon, Polyamide (PA)	Square	UL94 V-0	Brass	-40 °C	105 ░C	Surface Mount, Right Angle	General Purpose	Board to Cable/Wire	Header	Male Pin	Black	Tin		All	Solder	Varies by Wire Gauge	30 Áin	0.76 Ám	2	8
TE Connectivity AMP Connectors 794626-4	3 mm	0.118 in	0.118 in	3 mm	Shrouded - 4 Wall	7.37 mm	0.29 in	2.54 µm	100 µin	250 VDC	Locking Ramp	Gold	Nylon, Polyamide (PA)	Square	UL94 V-0	Brass	-40 °C	105 ░C	Surface Mount, Right Angle	General Purpose	Board to Cable/Wire	Header	Male Pin	Black	Tin-Lead		All	Solder	Varies by Wire Gauge	30 Áin	0.76 Ám	2	4
TE Connectivity AMP Connectors 5-794626-4	3 mm	0.118 in	0.118 in	3 mm	Shrouded - 4 Wall	7.37 mm	0.29 in	2.54 µm	100 µin	250 VDC	Locking Ramp	Gold	Nylon, Polyamide (PA)	Square	UL94 V-0	Brass	-40 °C	105 ░C	Surface Mount, Right Angle	General Purpose	Board to Cable/Wire	Header	Male Pin	Black	Tin		All	Solder	Varies by Wire Gauge	30 Áin	0.76 Ám	2	24
TE Connectivity AMP Connectors 794626-2	3 mm	0.118 in			Shrouded - 4 Wall	7.37 mm	0.29 in	2.54 µm	100 µin	250 VDC	Locking Ramp	Gold	Nylon, Polyamide (PA)	Square	UL94 V-0	Brass	-40 °C	105 ░C	Surface Mount, Right Angle	General Purpose	Board to Cable/Wire	Header	Male Pin	Black	Tin-Lead		All	Solder	Varies by Wire Gauge	30 Áin	0.76 Ám	2	2
TE Connectivity AMP Connectors 4-794626-4	3 mm	0.118 in	0.118 in	3 mm	Shrouded - 4 Wall	7.37 mm	0.29 in	2.54 µm	100 µin	250 VDC	Locking Ramp	Gold	Nylon, Polyamide (PA)	Square	UL94 V-0	Brass	-40 °C	105 ░C	Surface Mount, Right Angle	General Purpose	Board to Cable/Wire	Header	Male Pin	Black	Tin		All	Solder	Varies by Wire Gauge	30 Áin	0.76 Ám	2	14
TE Connectivity AMP Connectors 4-794626-8	3 mm	0.118 in	0.118 in	3 mm	Shrouded - 4 Wall	7.37 mm	0.29 in	2.54 µm	100 µin	250 VDC	Locking Ramp	Gold	Nylon, Polyamide (PA)	Square	UL94 V-0	Brass	-40 °C	105 ░C	Surface Mount, Right Angle	General Purpose	Board to Cable/Wire	Header	Male Pin	Black	Tin		All	Solder	Varies by Wire Gauge	30 Áin	0.76 Ám	2	18
TE Connectivity AMP Connectors 4-794626-0	3 mm	0.118 in	0.118 in	3 mm	Shrouded - 4 Wall	7.37 mm	0.29 in	2.54 µm	100 µin	250 VDC	Locking Ramp	Gold	Nylon, Polyamide (PA)	Square	UL94 V-0	Brass	-40 °C	105 ░C	Surface Mount, Right Angle	General Purpose	Board to Cable/Wire	Header	Male Pin	Black	Tin		All	Solder	Varies by Wire Gauge	30 Áin	0.76 Ám	2	10
