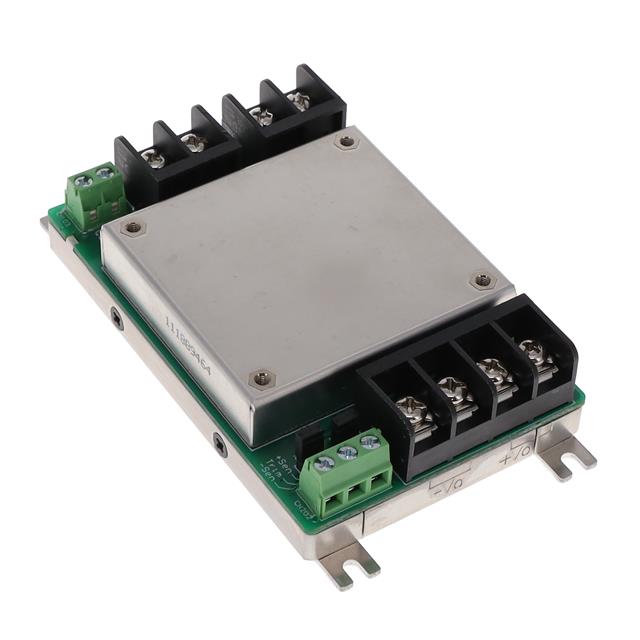

CHE75W-48S48-CM

Cincon Electronics Co. LTD

DC/DC CONVERTER 48V 75W

Deep-Dive with AI

Search across all available documentation for this part.

CHE75W-48S48-CM

Cincon Electronics Co. LTD

DC/DC CONVERTER 48V 75W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CHE75W-48S48-CM

Applications	ITE (Commercial)
Approval Agency	CE, cURus
Current - Output (Max) [Max]	1.56 A
Efficiency	90 %
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Power (Watts)	75 W
Size / Dimension [x]	101.2 mm
Size / Dimension [x]	3.98 in
Size / Dimension [y]	2.54 in
Size / Dimension [y]	64.6 mm
Size / Dimension [z]	26.2 mm
Size / Dimension [z]	1.03 in
Type	Enclosed
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	48 V

CHE75W Series

Part	Mounting Type	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Package / Case	Applications	Approval Agency	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Supplier Device Package	Features	Control Features	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Type	Voltage - Output 1	Voltage - Isolation	Power (Watts)	Number of Outputs
Cincon Electronics Co. LTD CHE75W-24S05	Through Hole	60950-1	-40 °C	105 C	91 %	Half Brick	ITE (Commercial)	CE	9 V	15 A	Half Brick	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	36 V	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	Isolated Module	5 V	1.5 kV	75 W	1
Cincon Electronics Co. LTD CHE75W-48S24	Through Hole	60950-1	-40 °C	105 C	90.5 %	Half Brick	ITE (Commercial)	CE	18 V	3.12 A	Half Brick	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	75 V	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	Isolated Module	24 V	1.5 kV	75 W	1
Cincon Electronics Co. LTD CHE75W-48S48-CM	Chassis Mount		-40 °C	105 C	90 %		ITE (Commercial)	CE cURus	18 V	1.56 A				75 V	3.98 in	1.03 in	2.54 in	26.2 mm	64.6 mm	101.2 mm	Enclosed	48 V	1.5 kV	75 W	1
Cincon Electronics Co. LTD CHE75W-24S24	Through Hole	60950-1	-40 °C	105 C	90 %	Half Brick	ITE (Commercial)	CE	9 V	3.12 A	Half Brick	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	36 V	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	Isolated Module	24 V	1.5 kV	75 W	1
Cincon Electronics Co. LTD CHE75W-48S48	Through Hole	60950-1	-40 °C	105 C	90 %	Half Brick	ITE (Commercial)	CE	18 V	1.56 A	Half Brick	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	75 V	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	Isolated Module	48 V	1.5 kV	75 W	1
Cincon Electronics Co. LTD CHE75W-24S05-CM	Chassis Mount		-40 °C	105 C	91 %		ITE (Commercial)	CE cURus	9 V	15 A				36 V	3.98 in	1.03 in	2.54 in	26.2 mm	64.6 mm	101.2 mm	Enclosed	5 V	1.5 kV	75 W	1
Cincon Electronics Co. LTD CHE75W-24S12	Through Hole	60950-1	-40 °C	105 C	91.5 %	Half Brick	ITE (Commercial)	CE	9 V	6.25 A	Half Brick	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	36 V	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	Isolated Module	12 V	1.5 kV	75 W	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 95.31
		5	$ 89.86
		10	$ 87.60
		25	$ 84.71
		50	$ 82.59
		100	$ 80.52
		250	$ 62.24

Description

General part information

CHE75W Series

Enclosed DC DC Converter 1 Output 48V 1.56A 75V Input
