Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 42.27 | |
| 16 | $ 37.01 | |||
| 112 | $ 33.13 | |||
General part information

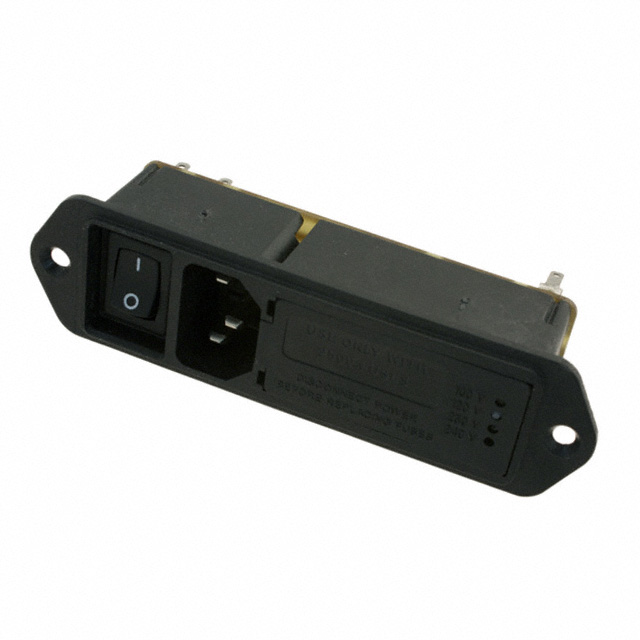

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 6VM2S |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | UL, VDE, CSA |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 6 A |
| Current Rating - Filter | 6 A |
| Features | Voltage Selector |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Fuse Holder, Drawer | Fuse Holder |
| Mounting Type | Panel Mount, Flange |
| Panel Cutout Dimensions [x] | 83.06 mm |
| Panel Cutout Dimensions [y] | 29.21 mm |
| Switch Features | Switch On-Off |
| Termination | Quick Connect - 0.110" (2.8mm) |
| Voltage Rating - Appliance Inlet | 120 VAC |
PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Features | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Current Rating - Filter | Voltage Rating - Appliance Inlet | Approval Agency | Accomodates a Fuse | Switch Features | Connector Type | Current Rating - Appliance Inlet | Fuse Holder, Drawer | Filter Type | Connector Style | Mounting Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Corcom Filters 6VM2S | Voltage Selector | 29.21 mm | 83.06 mm | 6 A | 120 VAC | CSA, UL, VDE | Switch On-Off | Receptacle, Male Blades - Module | 6 A | Fuse Holder | Filtered (EMI, RFI) - Commercial | IEC 320-C14 | Flange, Panel Mount | Quick Connect - 0.110" (2.8mm) |
