8808 0101000

Obsolete

Belden Inc.

2 #8 PVC/NYL PVC

Search across all available documentation for this part.

Obsolete

Belden Inc.

2 #8 PVC/NYL PVC

Technical Specifications

Parameters and characteristics for this part

Specification	8808 0101000

Cable Type	Speaker
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	19
Conductor Strand [custom]	21.5 AWG
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	0.57 in
Jacket (Insulation) Diameter [diameter]	14.48 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Usage	Audio
Voltage	600 V
Wire Gauge	8 AWG

Part	Conductor Insulation	Number of Conductors	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Jacket Color	Length	Length	Cable Type	Jacket (Insulation) Material	Voltage	Conductor Material	Usage
Belden Inc. 8808 0101000	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	2	Rip Cord	0.57 in	14.48 mm	19	21.5 AWG	8 AWG	Black	1000 ft	304.8 m	Speaker	Poly-Vinyl Chloride (PVC)	600 V	Copper Bare	Audio

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

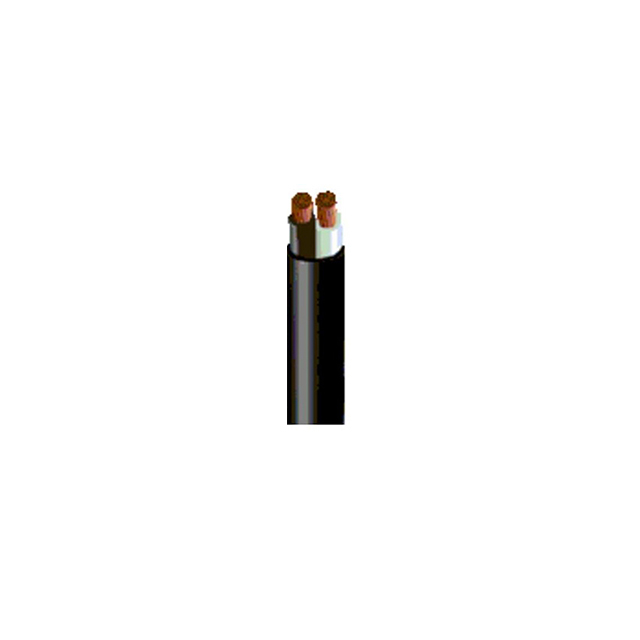

2 (1 Pair Twisted) Conductor Speaker Cable Black 8 AWG 1000.0' (304.8m)
