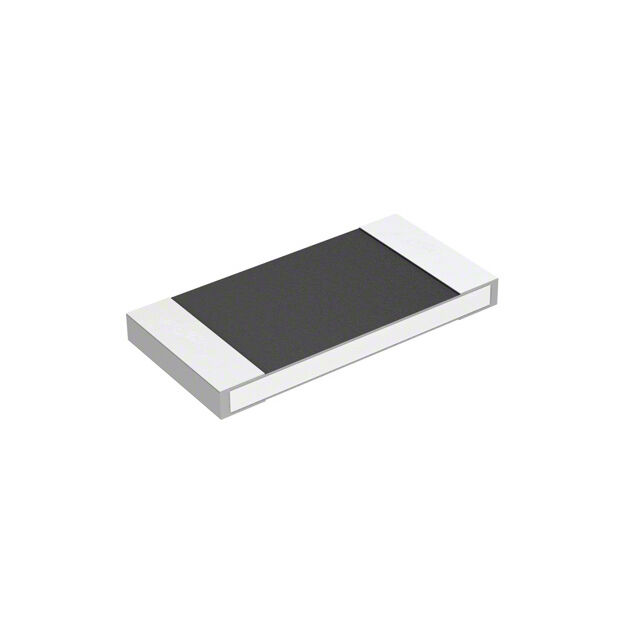

CRA2512-FZ-R060ELF
ActiveBourns Inc.
RES 0.06 OHM 1% 3W 2512
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CRA2512-FZ-R060ELF
ActiveBourns Inc.
RES 0.06 OHM 1% 3W 2512
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CRA2512-FZ-R060ELF |
|---|---|
| Composition | Metal Element |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant |
| Height - Seated (Max) [Max] [z] | 0.035 " |
| Height - Seated (Max) [Max] [z] | 0.9 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 170 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 6432 Metric |
| Package / Case | 2512 |
| Power (Watts) | 3 W |
| Ratings | AEC-Q200 |
| Resistance | 0.06 Ohms |
| Size / Dimension [x] | 0.254 in |
| Size / Dimension [x] | 6.45 mm |
| Size / Dimension [y] | 0.132 in |
| Size / Dimension [y] | 3.35 mm |
| Supplier Device Package | 2512 |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.64 | |
| 10 | $ 0.51 | |||
| 25 | $ 0.46 | |||
| 50 | $ 0.41 | |||
| 100 | $ 0.34 | |||
| 250 | $ 0.32 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.21 | |||
| Digi-Reel® | 1 | $ 0.64 | ||
| 10 | $ 0.51 | |||
| 25 | $ 0.46 | |||
| 50 | $ 0.41 | |||
| 100 | $ 0.34 | |||
| 250 | $ 0.32 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.21 | |||
| Tape & Reel (TR) | 4000 | $ 0.20 | ||
| 8000 | $ 0.20 | |||
| 12000 | $ 0.19 | |||
| 28000 | $ 0.19 | |||
Description
General part information
CRA2512 Series
60 mOhms ±1% 3W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant Metal Element
