Q-1Z03R0001072i

Active

Amphenol Custom Cable

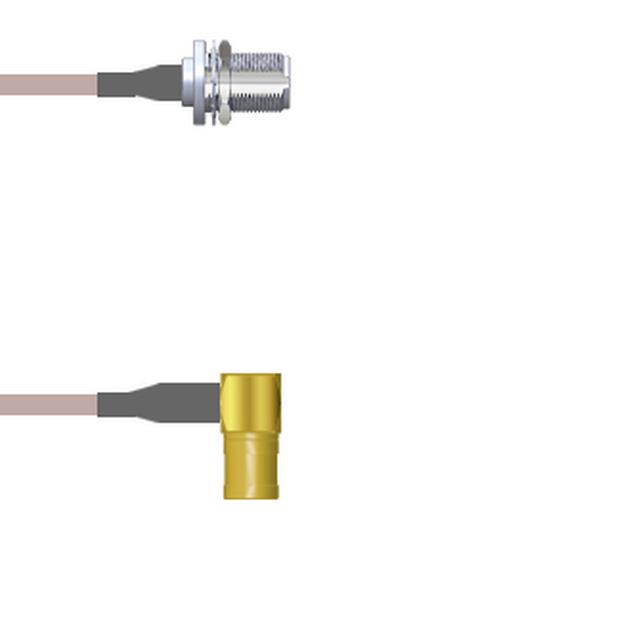

CBL ASSY SMB-NTYPE PLUG-JACK 6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1Z03R0001072i

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE PLUG-JACK 6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1Z03R0001072i

1st Connector	Right Angle, SMB Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	50 Ohms
Style	SMB to N-Type

Q-1Z03R0 Series

Part	Cable Type	Overall Impedance	Color	Length	Length	1st Connector Mounting Type	2nd Connector Mounting Type	1st Contact Gender	1st Connector	Style	2nd Connector	2nd Connector Mounting Feature	Frequency - Max [Max]	2nd Contact Gender	Features	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-1Z03R0001006i	RG-178	50 Ohms	Copper	152.4 mm	6 in	Free Hanging (In-Line)	Panel Mount	Female	Right Angle SMB Plug	SMB to N-Type	N-Type Jack	Bulkhead - Front Side Nut	4 GHz	Female	Shielded
Amphenol Custom Cable Q-1Z03R0001002M	RG-178	50 Ohms	Copper	2 m	78.7 in	Free Hanging (In-Line)	Panel Mount	Female	Right Angle SMB Plug	SMB to N-Type	N-Type Jack	Bulkhead - Front Side Nut	4 GHz	Female	Shielded	6.6 ft
Amphenol Custom Cable Q-1Z03R0001060i	RG-178	50 Ohms	Copper	1.5 m	5 '	Free Hanging (In-Line)	Panel Mount	Female	Right Angle SMB Plug	SMB to N-Type	N-Type Jack	Bulkhead - Front Side Nut	4 GHz	Female	Shielded	5 ft
Amphenol Custom Cable Q-1Z03R00010.5M	RG-178	50 Ohms	Copper	50 cm	19.69 "	Free Hanging (In-Line)	Panel Mount	Female	Right Angle SMB Plug	SMB to N-Type	N-Type Jack	Bulkhead - Front Side Nut	4 GHz	Female	Shielded
Amphenol Custom Cable Q-1Z03R0001018i	RG-178	50 Ohms	Copper			Free Hanging (In-Line)	Panel Mount	Female	Right Angle SMB Plug	SMB to N-Type	N-Type Jack	Bulkhead - Front Side Nut	4 GHz	Female	Shielded		457.2 mm	457.2 mm
Amphenol Custom Cable Q-1Z03R0001003M	RG-178	50 Ohms	Copper	3 m	118.1 in	Free Hanging (In-Line)	Panel Mount	Female	Right Angle SMB Plug	SMB to N-Type	N-Type Jack	Bulkhead - Front Side Nut	4 GHz	Female	Shielded	9.8 '
Amphenol Custom Cable Q-1Z03R0001009i	RG-178	50 Ohms	Copper	228.6 mm	9 "	Free Hanging (In-Line)	Panel Mount	Female	Right Angle SMB Plug	SMB to N-Type	N-Type Jack	Bulkhead - Front Side Nut	4 GHz	Female	Shielded
Amphenol Custom Cable Q-1Z03R0001024i	RG-178	50 Ohms	Copper	609.6 mm	24 "	Free Hanging (In-Line)	Panel Mount	Female	Right Angle SMB Plug	SMB to N-Type	N-Type Jack	Bulkhead - Front Side Nut	4 GHz	Female	Shielded
Amphenol Custom Cable Q-1Z03R0001072i	RG-178	50 Ohms	Copper	1.8 m	72 in	Free Hanging (In-Line)	Panel Mount	Female	Right Angle SMB Plug	SMB to N-Type	N-Type Jack	Bulkhead - Front Side Nut	4 GHz	Female	Shielded	6 ft
Amphenol Custom Cable Q-1Z03R00011.5M	RG-178	50 Ohms	Copper	1.5 m	59.1 in	Free Hanging (In-Line)	Panel Mount	Female	Right Angle SMB Plug	SMB to N-Type	N-Type Jack	Bulkhead - Front Side Nut	4 GHz	Female	Shielded	4.9 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 96.10
		25	$ 94.24
		50	$ 92.37
		100	$ 90.50
		250	$ 88.64

Description

General part information

Q-1Z03R0 Series

Cable Assembly Coaxial SMB to N-Type RG-178 72.0" (1.8m) 6.0'

Documents

Technical documentation and resources

No documents available
