SML-LX0404SIUPGUSB

Active

Lumex Opto/Components Inc.

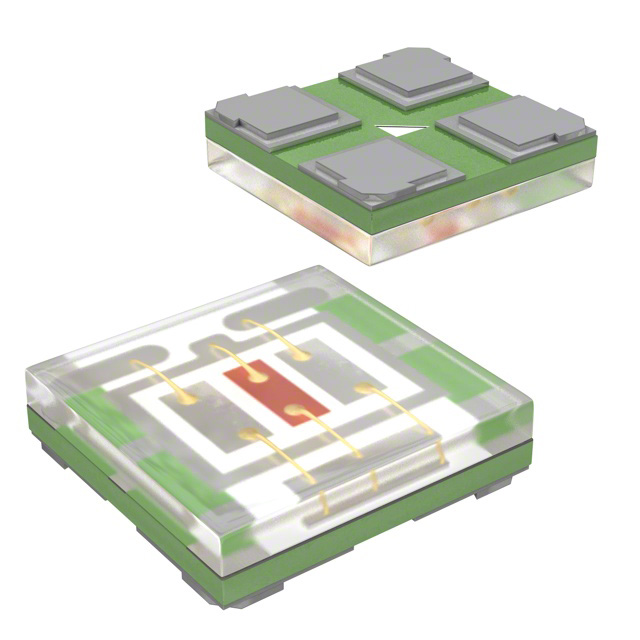

LED RGB CLEAR SMD

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED RGB CLEAR SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SML-LX0404SIUPGUSB

Color	Red, Green, Blue
Configuration	Common Anode
Current - Test [custom]	2 mA
Current - Test [custom]	2 mA
Current - Test [custom]	2 mA
Height (Max) [Max] [z]	0.3 mm
Lens Color	Colorless
Lens Size	1 mm
Lens Style	Square with Flat Top
Lens Transparency	Clear
Millicandela Rating [custom]	40 mcd
Millicandela Rating [custom]	20 mcd
Millicandela Rating [custom]	30 mcd
Mounting Type	Surface Mount
Package / Case	0404
Size / Dimension [x]	1 mm
Size / Dimension [y]	1 mm
Supplier Device Package	SMD
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ) [custom]	2.85 V
Voltage - Forward (Vf) (Typ) [custom]	2.73 V
Voltage - Forward (Vf) (Typ) [custom]	1.95 V
Wavelength - Peak	632 nm, 465 nm, 518 nm

LED RGB CLEAR SMD

Part	Configuration	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Peak	Lens Color	Lens Size	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Lens Style	Height (Max) [Max] [z]	Color	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Package / Case	Viewing Angle	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Lens Transparency	Mounting Type
Lumex Opto/Components Inc. SML-LX0404SIUPGUSB	Common Anode	40 mcd	20 mcd	30 mcd	465 nm, 518 nm, 632 nm	Colorless	1 mm	1 mm	1 mm	SMD	Square with Flat Top	0.3 mm	Blue, Green, Red	2.85 V	2.73 V	1.95 V	0404	120 °	2 mA	2 mA	2 mA	Clear	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red, Green, Blue (RGB) LED Indication - Discrete 1.95V Red, 2.85V Green, 2.73V Blue 0404 (1010 Metric)

Technical documentation and resources
