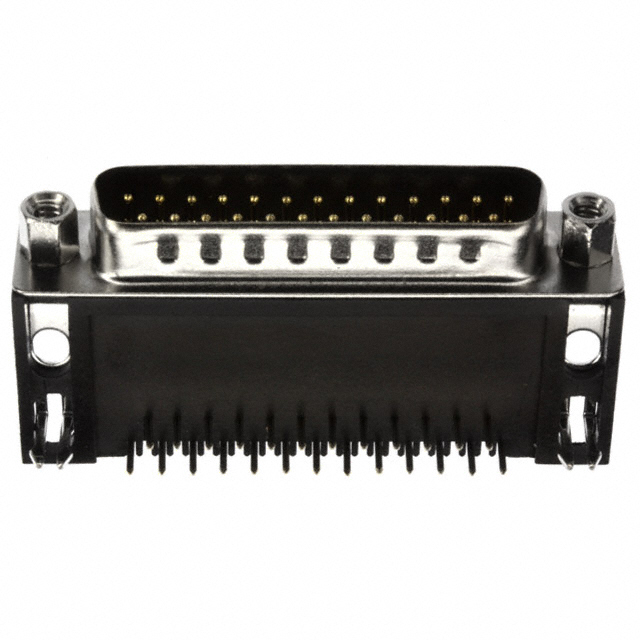

183-025-113R541

Active

MH Connectors

CONN D-SUB PLUG 25POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

183-025-113R541

Active

MH Connectors

CONN D-SUB PLUG 25POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	183-025-113R541

Backset Spacing	0.59 "
Backset Spacing	14.99 mm
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Grounding Indents, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder

183-025 Series

Part	Backset Spacing	Backset Spacing	Dielectric Material	Contact Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish	Current Rating (Amps)	Number of Rows	Color	Termination	Connector Type	Flange Feature	Contact Finish Thickness	Material Flammability Rating	Features	Contact Material	Shell Material, Finish
MH Connectors 183-025-212-431	0.59 "	14.99 mm	Polyester Glass Filled	Signal	Panel Mount Right Angle Through Hole	105 ░C	-55 °C	D-Sub	B DB	3	Gold	5 A	2	Black	Solder	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Flash	UL94 V-0
MH Connectors 183-025-113R571	0.59 "	14.99 mm	Polyamide (PA9T) Nylon 9T	Signal	Panel Mount Right Angle Through Hole	105 ░C	-55 °C	D-Sub	B DB	3	Gold	5 A	2	Black	Solder	Male Pins Plug	Housing/Shell (4-40)	Flash	UL94 V-0	Board Lock Grounding Indents	Brass	Nickel Plated Steel
MH Connectors 183-025-113R431	0.59 "	14.99 mm	Polyamide (PA9T) Nylon 9T	Signal	Panel Mount Right Angle Through Hole	105 ░C	-55 °C	D-Sub	B DB	3	Gold	5 A	2	Black	Solder	Male Pins Plug	Housing/Shell (Unthreaded)	Flash	UL94 V-0	Grounding Indents	Brass	Nickel Plated Steel
MH Connectors 183-025-113R551	0.59 "	14.99 mm	Polyamide (PA9T) Nylon 9T	Signal	Panel Mount Right Angle Through Hole	105 ░C	-55 °C	D-Sub	B DB	3	Gold	5 A	2	Black	Solder	Male Pins Plug	Housing/Shell (4-40)	Flash	UL94 V-0	Grounding Indents	Brass	Nickel Plated Steel
MH Connectors 183-025-213R171	0.59 "	14.99 mm	Polyamide (PA9T) Nylon 9T	Signal	Panel Mount Right Angle Through Hole	105 ░C	-55 °C	D-Sub	B DB	3	Gold	5 A	2	Black	Solder	Receptacle Female Sockets	Housing/Shell (4-40)	Flash	UL94 V-0	Ground Strap	Brass	Nickel Plated Steel
MH Connectors 183-025-213R551	0.59 "	14.99 mm	Polyamide (PA9T) Nylon 9T	Signal	Panel Mount Right Angle Through Hole	105 ░C	-55 °C	D-Sub	B DB	3	Gold	5 A	2	Black	Solder	Receptacle Female Sockets	Housing/Shell (4-40)	Flash	UL94 V-0		Brass	Nickel Plated Steel
MH Connectors 183-025-113R541	0.59 "	14.99 mm	Polyamide (PA9T) Nylon 9T	Signal	Panel Mount Right Angle Through Hole	105 ░C	-55 °C	D-Sub	B DB	3	Gold	5 A	2	Black	Solder	Male Pins Plug	Female Screwlock (4-40) Mating Side	Flash	UL94 V-0	Board Lock Grounding Indents	Brass	Nickel Plated Steel
MH Connectors 183-025-113R481	0.59 "	14.99 mm	Polyamide (PA9T) Nylon 9T	Signal	Panel Mount Right Angle Through Hole	105 ░C	-55 °C	D-Sub	B DB	3	Gold	5 A	2	Black	Solder	Male Pins Plug	Female Screwlock (4-40) Mating Side	Flash	UL94 V-0	Grounding Indents	Brass	Nickel Plated Steel
MH Connectors 183-025-112-171	0.59 "	14.99 mm	Polyester Glass Filled	Signal	Panel Mount Right Angle Through Hole	105 ░C	-55 °C	D-Sub	B DB	3	Gold	5 A	2	Black	Solder	Male Pins Plug	Housing/Shell (4-40)	Flash	UL94 V-0	Ground Strap Grounding Indents
MH Connectors 183-025-213R161	0.59 "	14.99 mm	Polyamide (PA9T) Nylon 9T	Signal	Panel Mount Right Angle Through Hole	105 ░C	-55 °C	D-Sub	B DB	3	Gold	5 A	2	Black	Solder	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Flash	UL94 V-0	Ground Strap	Brass	Nickel Plated Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 4.11
Newark	Each	500	$ 5.20
		1000	$ 4.89

Description

General part information

183-025 Series

25 Position D-Sub Plug, Male Pins Connector
