5-104481-2
ActiveTE Connectivity AMP Connectors

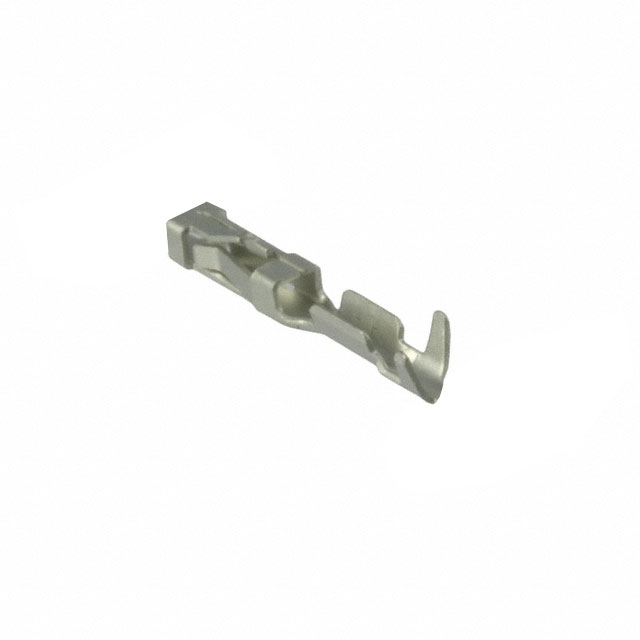

CONN SOCKET 28-32AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-104481-2
ActiveTE Connectivity AMP Connectors
CONN SOCKET 28-32AWG CRIMP TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-104481-2 | 104481 Series |
|---|---|---|
| Contact Finish | Tin | Gold, Tin |
| Contact Finish Thickness | 2.54 µm | 0.38 - 2.54 µm |
| Contact Finish Thickness | 100 µin | 15 - 100 µin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Wire Gauge [Max] | 32 AWG | 32 AWG |
| Wire Gauge [Min] | 27.5 AWG | 27.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.19 | |
| 10 | $ 0.16 | |||
| 25 | $ 0.15 | |||
| 50 | $ 0.14 | |||
| 100 | $ 0.13 | |||
| 250 | $ 0.12 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.11 | |||
| 2500 | $ 0.10 | |||
| Tape & Reel (TR) | 15000 | $ 0.09 | ||
| 30000 | $ 0.08 | |||
| 75000 | $ 0.07 | |||
104481 Series
CONN SOCKET 28-32AWG CRIMP GOLD
| Part | Contact Finish Thickness | Contact Finish Thickness | Wire Gauge [Max] | Wire Gauge [Min] | Pin or Socket | Contact Termination | Contact Finish |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 104481-7 | 15 µin | 0.38 µm | 32 AWG | 27.5 AWG | Socket | Crimp | Gold |
TE Connectivity AMP Connectors 1-104481-1 | 30 Áin | 0.76 Ám | 32 AWG | 27.5 AWG | Socket | Crimp | Gold |
TE Connectivity AMP Connectors 5-104481-2 | 100 µin | 2.54 µm | 32 AWG | 27.5 AWG | Socket | Crimp | Tin |
TE Connectivity AMP Connectors 104481-8 | 30 Áin | 0.76 Ám | 32 AWG | 27.5 AWG | Socket | Crimp | Gold |
TE Connectivity AMP Connectors 1-104481-2 | 15 µin | 0.38 µm | 32 AWG | 27.5 AWG | Socket | Crimp | Gold |
TE Connectivity AMP Connectors 1-104481-0 | 15 µin | 0.38 µm | 32 AWG | 27.5 AWG | Socket | Crimp | Gold |
Description
General part information
104481 Series
Socket Contact Tin 28-32 AWG Crimp
