R185054020

Active

Radiall USA, Inc.

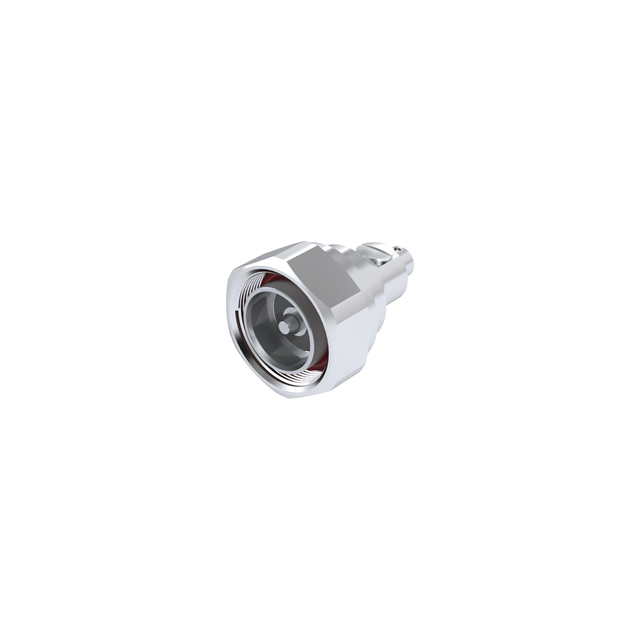

7-16 / STRAIGHT PLUG SOLDER TYPE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

7-16 / STRAIGHT PLUG SOLDER TYPE

Technical Specifications

Parameters and characteristics for this part

Specification	R185054020

Body Finish	Silver
Body Material	Brass
Cable Group	0.25 in
Cable Group	RG-401
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	7/16 DIN
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	7.5 GHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	1400 V

Part	Housing Color	Frequency - Max [Max]	Ingress Protection	Connector Type	Connector Style	Body Material	Cable Group	Cable Group	Dielectric Material	Contact Termination	Shield Termination	Mating Cycles	Mounting Type	Number of Ports	Voltage Rating	Body Finish	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Center Contact Material
Radiall USA, Inc. R185054020	Silver	7.5 GHz	IP67 - Dust Tight Waterproof	Male Pin Plug	7/16 DIN	Brass	0.25 in	RG-401	Polytetrafluoroethylene (PTFE)	Solder	Solder	500	Free Hanging (In-Line)	1	1400 V	Silver	50 Ohms	105 ░C	-55 °C	Silver	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 24.04

General part information

7/16 DIN Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
