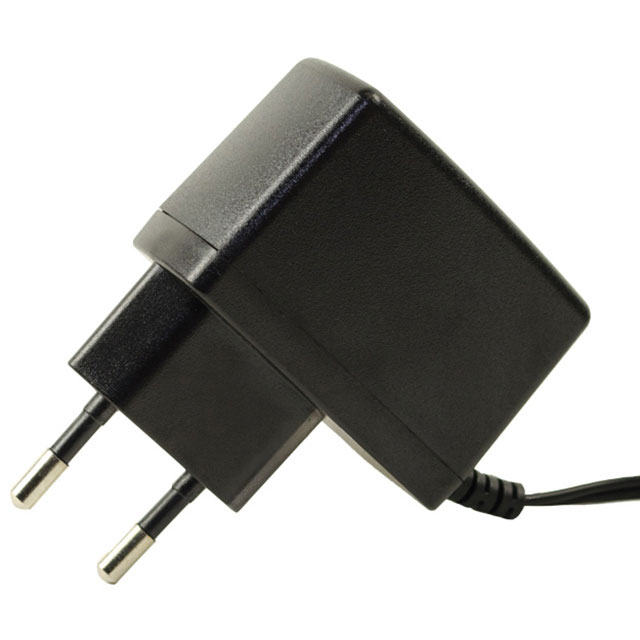

SWM12-12-EH-P6 - SWM12-E

SWM12-12-EH-P6

Active
CUI Inc.

AC/DC WALL MOUNT ADAPTER 12V 12W

Deep-Dive with AI

Search across all available documentation for this part.

SWM12-12-EH-P6 - SWM12-E

SWM12-12-EH-P6

Active
CUI Inc.

AC/DC WALL MOUNT ADAPTER 12V 12W

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

SpecificationSWM12-12-EH-P6
ApplicationsMedical
Approval AgencyUL, TUV, FCC, PSE, IEC, CSA, CB Scheme, EN
Cord Length1.5 m
Cord Length59 in
Current - Output (Max) [Max]1 A
EfficiencyCoC Tier 2, Level VI
FormWall Mount (Class II)
Input ConnectorCEE 7/16
Input TypeFixed Blade
No Load Power Consumption100 mW
Operating Temperature [Max]40 °C
Operating Temperature [Min]0 °C
Output ConnectorBarrel Plug
Output Connector [diameter]5.5 mm, 2.5 mm
Output Connector [x]9.5 mm
PolarizationPositive Center
Power (Watts)12 W
Region UtilizedEurope
Size / Dimension [x]55 mm
Size / Dimension [x]2.17 "
Size / Dimension [y]0.98 in
Size / Dimension [y]25 mm
Size / Dimension [z]1.44 "
Size / Dimension [z]36.7 mm
Standard Number61000-3-3, 60601-1, C22.2 No. 60601-1, 55032 Class B, 55024, 60950-1, 61000-3-2
Voltage - Input [Max]264 VAC
Voltage - Input [Min]90 VAC
Voltage - Output12 V

SWM12-E Series

Wall Mount AC Adapters 12W 6V 2A EU Vert 2.1plug

...
PartInput ConnectorOutput Connector [diameter]Output Connector [x]Output ConnectorFormCord LengthCord LengthPower (Watts)Approval AgencyVoltage - Input [Min]Voltage - Input [Max]Voltage - OutputCurrent - Output (Max) [Max]Input TypeStandard NumberSize / Dimension [y]Size / Dimension [y]Size / Dimension [x]Size / Dimension [z]Size / Dimension [z]Size / Dimension [x]PolarizationOperating Temperature [Max]Operating Temperature [Min]No Load Power ConsumptionApplicationsRegion UtilizedEfficiencyOutput Connector [z]Output Connector [y]
CUI Inc.
SWM12-12-EH-P6
CEE 7/16
2.5 mm
5.5 mm
9.5 mm
Barrel Plug
Wall Mount (Class II)
1.5 m
59 in
12 W
CB Scheme
CSA
EN
FCC
IEC
PSE
TUV
UL
90 VAC
264 VAC
12 V
1 A
Fixed Blade
55024
55032 Class B
60601-1
60950-1
61000-3-2
61000-3-3
C22.2 No. 60601-1
0.98 in
25 mm
55 mm
1.44 "
36.7 mm
2.17 "
Positive Center
40 °C
0 °C
100 mW
Medical
Europe
CoC Tier 2
Level VI
CUI Inc.
SWM12-5-NV-P6R
NEMA 1-15P
2.5 mm
5.5 mm
9.5 mm
Barrel Plug R/A
Wall Mount (Class II)
1.5 m
59 in
12 W
CB Scheme
CSA
EN
FCC
IEC
PSE
UL
90 VAC
264 VAC
5 V
2.4 A
Fixed Blade
55024
55032 Class B
60601-1
60950-1
61000-3-2
61000-3-3
C22.2 No. 60601-1
1.62 in
41.2 mm
53.5 mm
1.11 in
28.2 mm
2.11 "
Positive Center
40 °C
0 °C
100 mW
Medical
North America
CoC Tier 2
Level VI
CUI Inc.
SWM12-15-EV-P6
CEE 7/16
2.5 mm
5.5 mm
9.5 mm
Barrel Plug
Wall Mount (Class II)
1.5 m
59 in
12 W
CB Scheme
CSA
EN
FCC
IEC
PSE
TUV
UL
90 VAC
264 VAC
15 VDC
800 mA
Fixed Blade
55024
55032 Class B
60601-1
60950-1
61000-3-2
61000-3-3
C22.2 No. 60601-1
1.62 in
41.2 mm
53.5 mm
1.11 in
28.2 mm
2.11 "
Positive Center
40 °C
0 °C
100 mW
Medical
Europe
CoC Tier 2
Level VI
CUI Inc.
SWM12-9-NV-MUB
NEMA 1-15P
USB Micro
Wall Mount (Class II)
1.5 m
59 in
12 W
CB Scheme
CSA
EN
FCC
IEC
PSE
UL
90 VAC
264 VAC
9 V
1.33 A
Fixed Blade
55024
55032 Class B
60601-1
60950-1
61000-3-2
61000-3-3
C22.2 No. 60601-1
1.62 in
41.2 mm
53.5 mm
1.11 in
28.2 mm
2.11 "
40 °C
0 °C
100 mW
Medical
North America
CoC Tier 2
Level VI
CUI Inc.
SWM12-9-NH-P5R
NEMA 1-15P
2.1 mm
Barrel Plug R/A
Wall Mount (Class II)
1.5 m
59 in
12 W
CB Scheme
CSA
EN
FCC
IEC
PSE
UL
90 VAC
264 VAC
9 V
1.33 A
Fixed Blade
55024
55032 Class B
60601-1
60950-1
61000-3-2
61000-3-3
C22.2 No. 60601-1
0.98 in
25 mm
55 mm
1.44 "
36.7 mm
2.17 "
Positive Center
40 °C
0 °C
100 mW
Medical
North America
CoC Tier 2
Level VI
9.5 mm
5.5 mm
CUI Inc.
SWM12-24-NV-P5R
NEMA 1-15P
2.1 mm
Barrel Plug R/A
Wall Mount (Class II)
1.5 m
59 in
12 W
CB Scheme
CSA
EN
FCC
IEC
PSE
UL
90 VAC
264 VAC
24 V
500 mA
Fixed Blade
55024
55032 Class B
60601-1
60950-1
61000-3-2
61000-3-3
C22.2 No. 60601-1
1.62 in
41.2 mm
53.5 mm
1.11 in
28.2 mm
2.11 "
Positive Center
40 °C
0 °C
100 mW
Medical
North America
CoC Tier 2
Level VI
9.5 mm
5.5 mm
CUI Inc.
SWM12-18-EV-P6
CEE 7/16
2.5 mm
5.5 mm
9.5 mm
Barrel Plug
Wall Mount (Class II)
1.5 m
59 in
12 W
CB Scheme
CSA
EN
FCC
IEC
PSE
TUV
UL
90 VAC
264 VAC
18 V
660 mA
Fixed Blade
55024
55032 Class B
60601-1
60950-1
61000-3-2
61000-3-3
C22.2 No. 60601-1
1.62 in
41.2 mm
53.5 mm
1.11 in
28.2 mm
2.11 "
Positive Center
40 °C
0 °C
100 mW
Medical
Europe
CoC Tier 2
Level VI
CUI Inc.
SWM12-15-EV-P5
CEE 7/16
2.1 mm
5.5 mm
9.5 mm
Barrel Plug
Wall Mount (Class II)
1.5 m
59 in
12 W
CB Scheme
CSA
EN
FCC
IEC
PSE
TUV
UL
90 VAC
264 VAC
15 VDC
800 mA
Fixed Blade
55024
55032 Class B
60601-1
60950-1
61000-3-2
61000-3-3
C22.2 No. 60601-1
1.62 in
41.2 mm
53.5 mm
1.11 in
28.2 mm
2.11 "
Positive Center
40 °C
0 °C
100 mW
Medical
Europe
CoC Tier 2
Level VI
CUI Inc.
SWM12-18-NV-P5R
NEMA 1-15P
2.1 mm
Barrel Plug R/A
Wall Mount (Class II)
1.5 m
59 in
12 W
CB Scheme
CSA
EN
FCC
IEC
PSE
UL
90 VAC
264 VAC
18 V
660 mA
Fixed Blade
55024
55032 Class B
60601-1
60950-1
61000-3-2
61000-3-3
C22.2 No. 60601-1
1.62 in
41.2 mm
53.5 mm
1.11 in
28.2 mm
2.11 "
Positive Center
40 °C
0 °C
100 mW
Medical
North America
CoC Tier 2
Level VI
9.5 mm
5.5 mm
CUI Inc.
SWM12-5-NV-P5
NEMA 1-15P
2.1 mm
5.5 mm
9.5 mm
Barrel Plug
Wall Mount (Class II)
1.5 m
59 in
12 W
CB Scheme
CSA
EN
FCC
IEC
PSE
UL
90 VAC
264 VAC
5 V
2.4 A
Fixed Blade
55024
55032 Class B
60601-1
60950-1
61000-3-2
61000-3-3
C22.2 No. 60601-1
1.62 in
41.2 mm
53.5 mm
1.11 in
28.2 mm
2.11 "
Positive Center
40 °C
0 °C
100 mW
Medical
North America
CoC Tier 2
Level VI

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1120$ 10.30

Description

General part information

SWM12-E Series

Wall Mount AC Adapters 12W 6V 2A EU Vert 2.1plug
