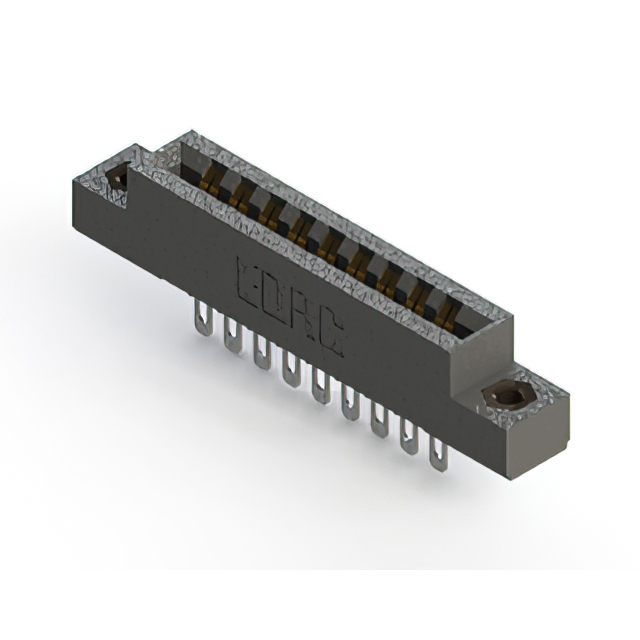

356-009-500-107

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

356-009-500-107

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	356-009-500-107

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Number of Positions	18
Number of Positions/Bay/Row [custom]	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	1

356-009 Series

Part	Read Out	Number of Positions/Bay/Row [custom]	Contact Material	Gender	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Card Type	Termination Rows	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Positions	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Flange Feature	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 356-009-520-101	Dual	9	Copper Alloy	Female	10 Áin	0.25 Ám	Polyester Thermoplastic	Non Specified - Dual Edge	1	Solder	-40 °C	105 ░C	Cantilever	18	2	0.156 in	3.96 mm	Gold	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Black
EDAC Inc. 356-009-521-158	Dual	9	Copper Alloy	Female	10 Áin	0.25 Ám	Polyester Thermoplastic	Non Specified - Dual Edge	1	Solder	-40 °C	105 ░C	Cantilever	18	2	0.156 in	3.96 mm	Gold	Panel Mount Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	4-40 Flush Mount Threaded Insert Top Opening	Card Guides
EDAC Inc. 356-009-521-103	Dual	9	Copper Alloy	Female	10 Áin	0.25 Ám	Polyester Thermoplastic	Non Specified - Dual Edge	1	Solder	-40 °C	105 ░C	Cantilever	18	2	0.156 in	3.96 mm	Gold	Panel Mount Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Floating Bobbin Flush Mount		0.116 in	2.95 mm
EDAC Inc. 356-009-521-168	Dual	9	Copper Alloy	Female	10 Áin	0.25 Ám	Polyester Thermoplastic	Non Specified - Dual Edge	1	Solder	-40 °C	105 ░C	Cantilever	18	2	0.156 in	3.96 mm	Gold	Panel Mount Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	4-40 Flush Mount Threaded Insert Top Opening	Card Guides
EDAC Inc. 356-009-500-102	Dual	9	Copper Alloy	Female	10 Áin	0.25 Ám	Polyester Thermoplastic	Non Specified - Dual Edge	1	Solder Eyelet(s)	-40 °C	105 ░C	Cantilever	18	2	0.156 in	3.96 mm	Gold		1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Flush Mount Top Opening Unthreaded		0.128 "	3.25 mm
EDAC Inc. 356-009-500-107	Dual	9	Copper Alloy	Female	10 Áin	0.25 Ám	Polyester Thermoplastic	Non Specified - Dual Edge	1	Solder Eyelet(s)	-40 °C	105 ░C	Cantilever	18	2	0.156 in	3.96 mm	Gold		1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 356-009-520-104	Dual	9	Copper Alloy	Female	10 Áin	0.25 Ám	Polyester Thermoplastic	Non Specified - Dual Edge	1	Solder	-40 °C	105 ░C	Cantilever	18	2	0.156 in	3.96 mm	Gold	Panel Mount Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Flush Mount Top Opening Unthreaded		0.156 in	3.96 mm
EDAC Inc. 356-009-521-108	Dual	9	Copper Alloy	Female	10 Áin	0.25 Ám	Polyester Thermoplastic	Non Specified - Dual Edge	1	Solder	-40 °C	105 ░C	Cantilever	18	2	0.156 in	3.96 mm	Gold	Panel Mount Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 356-009-400-103	Dual	9	Copper Alloy	Female			Polyester Thermoplastic	Non Specified - Dual Edge	1	Solder Eyelet(s)	-40 °C	105 ░C	Cantilever	18	2	0.156 in	3.96 mm	Tin		1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Floating Bobbin Flush Mount		0.116 in	2.95 mm
EDAC Inc. 356-009-500-112	Dual	9	Copper Alloy	Female	10 Áin	0.25 Ám	Polyester Thermoplastic	Non Specified - Dual Edge	1	Solder Eyelet(s)	-40 °C	105 ░C	Cantilever	18	2	0.156 in	3.96 mm	Gold		1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Flush Mount Side Opening Unthreaded		0.128 "	3.25 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 11.05
Newark	Each	25	$ 17.40
		50	$ 16.83
		100	$ 15.71
		250	$ 15.15
		500	$ 14.31

Description

General part information

356-009 Series

18 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
