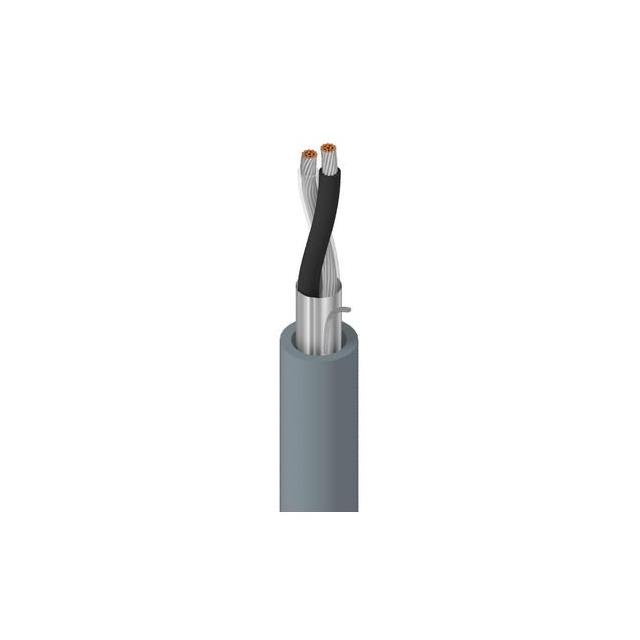

8761ZH 0601000

Active

Belden Inc.

CABLE 2COND 22AWG CHRM SHD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 22AWG CHRM SHD

Technical Specifications

Parameters and characteristics for this part

Specification	8761ZH 0601000

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	4.45 mm
Jacket (Insulation) Diameter [diameter]	0.175 in
Jacket (Insulation) Thickness	0.025 in
Jacket (Insulation) Thickness	0.635 mm
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	22 AWG

Part	Length	Length	Conductor Insulation	Shield Material	Shield Type	Cable Type	Voltage	Wire Gauge	Conductor Material	Jacket Color	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
Belden Inc. 8761ZH 0601000	1000 ft	304.8 m	Polyethylene (PE)	Aluminum	Foil	Multi-Conductor	300 V	22 AWG	Copper Tinned	Chrome	100 %	4.45 mm	0.175 in	7	30 AWG	2	Drain Wire	0.025 in	0.635 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.52

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Chrome 22 AWG Foil 1000.0' (304.8m)
