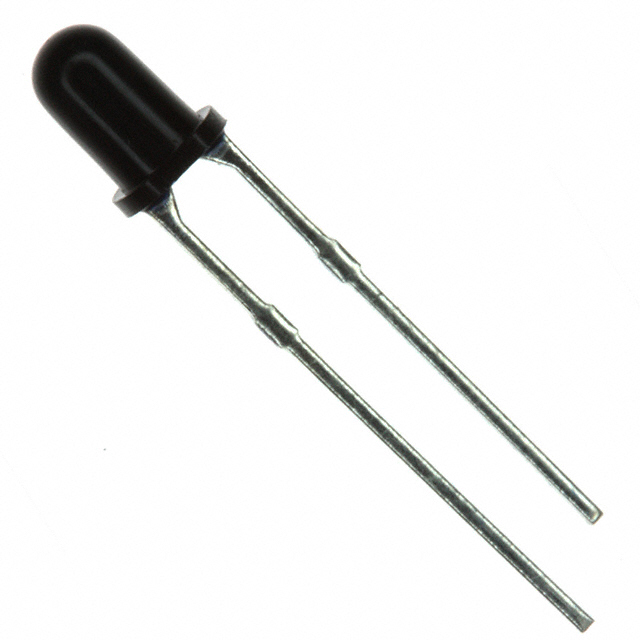

PNA1801LS0NC

Obsolete

Panasonic Industrial Automation Sales

SENSOR PHOTO 800NM TOP VIEW T1

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

SENSOR PHOTO 800NM TOP VIEW T1

Technical Specifications

Parameters and characteristics for this part

Specification	PNA1801LS0NC

Current - Collector (Ic) (Max) [Max]	20 mA
Mounting Type	Through Hole
Orientation	Top View
Package / Case	T-1
Power - Max [Max]	100 mW
Viewing Angle	60 °
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V
Wavelength	800 nm

Part	Package / Case	Orientation	Mounting Type	Current - Collector (Ic) (Max) [Max]	Viewing Angle	Wavelength	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]
Panasonic Industrial Automation Sales PNA1801LS	T-1	Top View	Through Hole	20 mA	60 °	800 nm	30 V	100 mW
Panasonic Industrial Automation Sales PNA1801LS0NC	T-1	Top View	Through Hole	20 mA	60 °	800 nm	30 V	100 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Phototransistors 800nm Top View T-1

Technical documentation and resources
