R141217000

Active

Radiall USA, Inc.

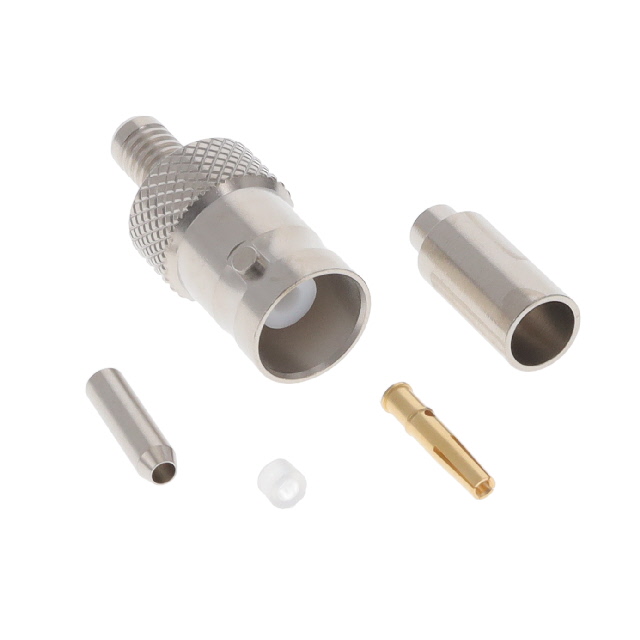

RF BNC CONNECTOR, FEMALE, CABLE MOUNT, CRIMP TERMINAL, JACK

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF BNC CONNECTOR, FEMALE, CABLE MOUNT, CRIMP TERMINAL, JACK

Technical Specifications

Parameters and characteristics for this part

Specification	R141217000

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-174, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polyamide (PA), Nylon, Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Mounting Type	Body Finish	Voltage Rating	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Frequency - Max [Max]	Fastening Type	Center Contact Plating	Body Material	Center Contact Material	Number of Ports	Housing Color	Mating Cycles	Shield Termination	Connector Style	Connector Type	Dielectric Material	Impedance
Radiall USA, Inc. R141217000	Free Hanging (In-Line)	Nickel	500 V	Crimp	-65 ░C	165 °C	316 RG-174	4 GHz	Bayonet Lock	Gold	Brass	Beryllium Copper	1	Silver	500	Crimp	BNC	Female Socket Jack	Polyamide (PA) Nylon Polytetrafluoroethylene (PTFE)	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
