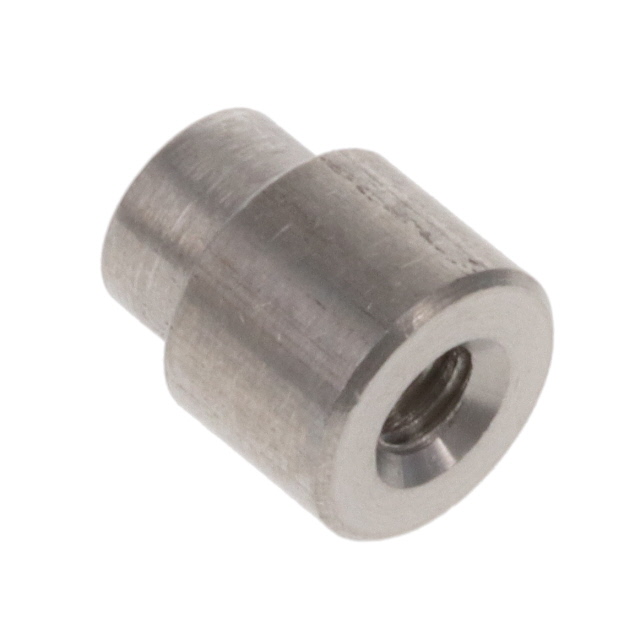

3046-B-440-SS

Active

RAF Electronic Hardware

1/4_ROUND_SWAGE_STANDOFFS

Search across all available documentation for this part.

Active

RAF Electronic Hardware

1/4_ROUND_SWAGE_STANDOFFS

Technical Specifications

Parameters and characteristics for this part

Part	Length - Overall [x]	Length - Overall [x]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Type	Material	Gender	Screw, Thread Size	Between Board Height	Between Board Height	Between Board Height	Threaded/Unthreaded	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Plating	Color
RAF Electronic Hardware 3046-B-632-AL	0.293 in	7.43 mm	6.35 mm	0.25 in	0.25 in	Round Standoff	Aluminum	Female	#6-32	0.188 "	4.78 mm	0.1875 "	Threaded
RAF Electronic Hardware 3046-B-440-B	0.293 in	7.43 mm	6.35 mm	0.25 in	0.25 in	Round Standoff	Brass	Female Swage	#4-40	0.188 "	4.78 mm	0.1875 "	Threaded	0.15 "	3.81 mm
RAF Electronic Hardware 3046-B-440-B-12	0.293 in	7.43 mm	6.35 mm	0.25 in	0.25 in	Round Standoff	Brass	Female	#4-40	0.188 "	4.78 mm	0.1875 "	Threaded			Chromate Zinc	Clear
RAF Electronic Hardware 3046-B-440-SS	0.293 in	7.43 mm	6.35 mm	0.25 in	0.25 in	Round Standoff	Stainless Steel	Female Swage	#4-40	0.188 "	4.78 mm	0.1875 "	Threaded
RAF Electronic Hardware 3046-B-440-AL-7	0.293 in	7.43 mm	6.35 mm	0.25 in	0.25 in	Round Standoff	Aluminum	Female	#4-40	0.188 "	4.78 mm	0.1875 "	Threaded			Iridite	Clear
RAF Electronic Hardware 3046-B-632-B	0.293 in	7.43 mm	6.35 mm	0.25 in	0.25 in	Round Standoff	Brass	Female Swage	#6-32	0.188 "	4.78 mm	0.1875 "	Threaded	0.15 "	3.81 mm
RAF Electronic Hardware 3046-B-632-B-37	0.293 in	7.43 mm	6.35 mm	0.25 in	0.25 in	Round Standoff	Brass	Female	#6-32	0.188 "	4.78 mm	0.1875 "	Threaded			Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	300	$ 1.43

General part information

Round Standoff Threaded #4-40 Stainless Steel 0.188" (4.78mm) 3/16"

Technical documentation and resources

No documents available
