Technical Specifications
Parameters and characteristics for this part
| Specification | AP62800SJ-7 |
|---|---|
| Current - Output | 8 A |
| Frequency - Switching | 800 kHz, 1.2 MHz, 400 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |

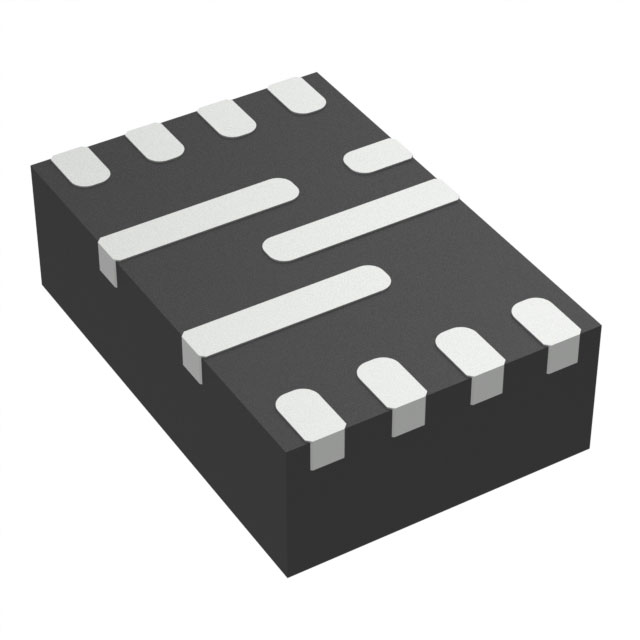

| Package / Case | 12-VFQFN |
| Supplier Device Package | V-QFN2030-12 (Type A) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 17 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output (Max) [Max] | 7 V |
| Voltage - Output (Min/Fixed) | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.17 | |
| 10 | $ 1.04 | |||
| 25 | $ 0.99 | |||
| 100 | $ 0.81 | |||
| 250 | $ 0.76 | |||
| 500 | $ 0.67 | |||
| 1000 | $ 0.53 | |||
| Digi-Reel® | 1 | $ 1.17 | ||
| 10 | $ 1.04 | |||
| 25 | $ 0.99 | |||
| 100 | $ 0.81 | |||
| 250 | $ 0.76 | |||
| 500 | $ 0.67 | |||
| 1000 | $ 0.53 | |||
| Tape & Reel (TR) | 3000 | $ 0.52 | ||
| 6000 | $ 0.49 | |||
| 9000 | $ 0.47 | |||
| 15000 | $ 0.45 | |||
| 21000 | $ 0.44 | |||
Description
General part information
AP62800 Series
The AP62800 is an 8A, synchronous buck converter with a wide input voltage range of 4.5V to 17V. The device fully integrates a 22mΩ high-side power MOSFET and a 10mΩ low-side power MOSFET to provide high-efficiency step-down DC-DC conversion.
