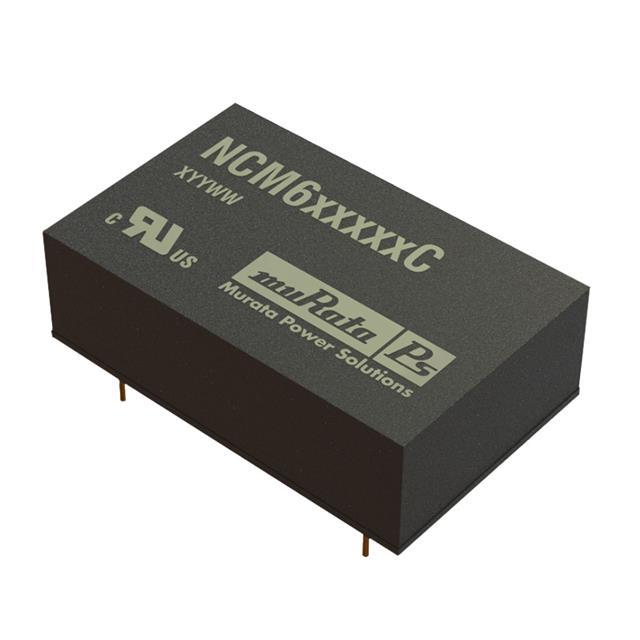

NCM6S4803C

Active

Murata Power Solutions Inc.

DC DC CONVERTER 3.3V 6W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NCM6S4803C

Active

Murata Power Solutions Inc.

DC DC CONVERTER 3.3V 6W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

NCM6S Series

Isolated Module DC DC Converter 1 Output 3.3V 1.52A 18V - 75V Input

Documents

Technical documentation and resources

Datasheet

Specification	NCM6S4803C	NCM6S Series

Applications	ITE (Commercial), Medical	ITE (Commercial), Medical
Control Features	Active Low, Enable	Active Low, Enable
Current - Output (Max) [Max]	1.52 A	1.2 - 500 A
Efficiency	74 %	74 - 87 %
Efficiency	-	83 %
Efficiency	-	78 %
Features	SCP, OTP, Remote On/Off, UVLO	SCP, OTP, Remote On/Off, UVLO
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	7 Leads	7 Leads
Package / Case	23-SMD Module	23-SMD Module, 24-DIP Module, 7 Leads
Power (Watts)	6 W	6 W
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	75 V	9 - 75 V
Voltage - Input (Min) [Min]	18 V	4.5 - 18 V
Voltage - Isolation	5.2 kV	5.2 kV
Voltage - Output 1	3.3 V	3.3 - 15 V

Part	Mounting Type	Current - Output (Max) [Max]	Type	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Number of Outputs	Power (Watts)	Features	Voltage - Isolation	Applications	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Package / Case	Package / Case	Control Features	Efficiency [Max]	Efficiency [Min]
Murata Power Solutions Inc. NCM6S0505C	Through Hole	1.2 A	Isolated Module	4.5 V	9 V	1	6 W	OTP, Remote On/Off, SCP, UVLO	5.2 kV	ITE (Commercial), Medical	5 V	85 °C	-40 °C	80 %	7 Leads	23-SMD Module	Active Low, Enable
Murata Power Solutions Inc. NCM6S0503C	Through Hole	1.52 A	Isolated Module	4.5 V	9 V	1	6 W	OTP, Remote On/Off, SCP, UVLO	5.2 kV	ITE (Commercial), Medical	3.3 V	85 °C	-40 °C	75 %	7 Leads	23-SMD Module	Active Low, Enable
Murata Power Solutions Inc. NCM6S1203C	Through Hole	1.52 A	Isolated Module	9 V	36 V	1	6 W	OTP, Remote On/Off, SCP, UVLO	5.2 kV	ITE (Commercial), Medical	3.3 V	85 °C	-40 °C	79 %	7 Leads	23-SMD Module	Active Low, Enable
Murata Power Solutions Inc. NCM6S0503EC	Through Hole	1.52 A	Isolated Module	4.5 V	9 V	1	6 W	OTP, Remote On/Off, SCP, UVLO	5.2 kV	ITE (Commercial), Medical	3.3 V	85 °C	-40 °C	75 %		24-DIP Module, 7 Leads	Active Low, Enable
Murata Power Solutions Inc. NCM6S1215C	Through Hole	400 mA	Isolated Module	9 V	36 V	1	6 W	OTP, Remote On/Off, SCP, UVLO	5.2 kV	ITE (Commercial), Medical	15 V	85 °C	-40 °C	87 %	7 Leads	23-SMD Module	Active Low, Enable
Murata Power Solutions Inc. NCM6S4815C	Through Hole	400 mA	Isolated Module	18 V	75 V	1	6 W	OTP, Remote On/Off, SCP, UVLO	5.2 kV	ITE (Commercial), Medical	15 V	85 °C	-40 °C	83 %	7 Leads	23-SMD Module	Active Low, Enable
Murata Power Solutions Inc. NCM6S4805EC	Through Hole	1.2 A	Isolated Module	18 V	75 V	1	6 W	OTP, Remote On/Off, SCP, UVLO	5.2 kV	ITE (Commercial), Medical	5 V	85 °C	-40 °C			24-DIP Module, 7 Leads	Active Low, Enable	83 %	78 %
Murata Power Solutions Inc. NCM6S0512EC	Through Hole	500 mA	Isolated Module	4.5 V	9 V	1	6 W	OTP, Remote On/Off, SCP, UVLO	5.2 kV	ITE (Commercial), Medical	12 V	85 °C	-40 °C			24-DIP Module, 7 Leads	Active Low, Enable
Murata Power Solutions Inc. NCM6S0515C	Through Hole	400 mA	Isolated Module	4.5 V	9 V	1	6 W	OTP, Remote On/Off, SCP, UVLO	5.2 kV	ITE (Commercial), Medical	15 V	85 °C	-40 °C		7 Leads	23-SMD Module	Active Low, Enable
Murata Power Solutions Inc. NCM6S4803C	Through Hole	1.52 A	Isolated Module	18 V	75 V	1	6 W	OTP, Remote On/Off, SCP, UVLO	5.2 kV	ITE (Commercial), Medical	3.3 V	85 °C	-40 °C	74 %	7 Leads	23-SMD Module	Active Low, Enable

Part

Mounting Type

Current - Output (Max) [Max]

Type

Voltage - Input (Min) [Min]

Voltage - Input (Max) [Max]

Number of Outputs

Power (Watts)

Features

Voltage - Isolation

Applications

Voltage - Output 1

Operating Temperature [Max]

Operating Temperature [Min]

Efficiency

Package / Case

Control Features

Efficiency [Max]

Efficiency [Min]

Murata Power Solutions Inc.

NCM6S0505C

Through Hole

1.2 A

Isolated Module

4.5 V

9 V

6 W

OTP, Remote On/Off, SCP, UVLO

5.2 kV

ITE (Commercial), Medical

5 V

85 °C

-40 °C

80 %

7 Leads

23-SMD Module

Active Low, Enable

Murata Power Solutions Inc.

NCM6S0503C

Through Hole

1.52 A

Isolated Module

4.5 V

9 V

6 W

OTP, Remote On/Off, SCP, UVLO

5.2 kV

ITE (Commercial), Medical

3.3 V

85 °C

-40 °C

75 %

7 Leads

23-SMD Module

Active Low, Enable

Murata Power Solutions Inc.

NCM6S1203C

Through Hole

1.52 A

Isolated Module

9 V

36 V

6 W

OTP, Remote On/Off, SCP, UVLO

5.2 kV

ITE (Commercial), Medical

3.3 V

85 °C

-40 °C

79 %

7 Leads

23-SMD Module

Active Low, Enable

Murata Power Solutions Inc.

NCM6S0503EC

Through Hole

1.52 A

Isolated Module

4.5 V

9 V

6 W

OTP, Remote On/Off, SCP, UVLO

5.2 kV

ITE (Commercial), Medical

3.3 V

85 °C

-40 °C

75 %

24-DIP Module, 7 Leads

Active Low, Enable

Murata Power Solutions Inc.

NCM6S1215C

Through Hole

400 mA

Isolated Module

9 V

36 V

6 W

OTP, Remote On/Off, SCP, UVLO

5.2 kV

ITE (Commercial), Medical

15 V

85 °C

-40 °C

87 %

7 Leads

23-SMD Module

Active Low, Enable

Murata Power Solutions Inc.

NCM6S4815C

Through Hole

400 mA

Isolated Module

18 V

75 V

6 W

OTP, Remote On/Off, SCP, UVLO

5.2 kV

ITE (Commercial), Medical

15 V

85 °C

-40 °C

83 %

7 Leads

23-SMD Module

Active Low, Enable

Murata Power Solutions Inc.

NCM6S4805EC

Through Hole

1.2 A

Isolated Module

18 V

75 V

6 W

OTP, Remote On/Off, SCP, UVLO

5.2 kV

ITE (Commercial), Medical

5 V

85 °C

-40 °C

24-DIP Module, 7 Leads

Active Low, Enable

83 %

78 %

Murata Power Solutions Inc.

NCM6S0512EC

Through Hole

500 mA

Isolated Module

4.5 V

9 V

6 W

OTP, Remote On/Off, SCP, UVLO

5.2 kV

ITE (Commercial), Medical

12 V

85 °C

-40 °C

24-DIP Module, 7 Leads

Active Low, Enable

Murata Power Solutions Inc.

NCM6S0515C

Through Hole

400 mA

Isolated Module

4.5 V

9 V

6 W

OTP, Remote On/Off, SCP, UVLO

5.2 kV

ITE (Commercial), Medical

15 V

85 °C

-40 °C

7 Leads

23-SMD Module

Active Low, Enable

Murata Power Solutions Inc.

NCM6S4803C

Through Hole

1.52 A

Isolated Module

18 V

75 V

6 W

OTP, Remote On/Off, SCP, UVLO

5.2 kV

ITE (Commercial), Medical

3.3 V

85 °C

-40 °C

74 %

7 Leads

23-SMD Module

Active Low, Enable
